NEVB-LOGIC01 footprint adapter board

NEVB-LOGIC01 is a dual in-line logic footprint adapter board, designed to simplify the evaluation of Nexperia logic devices by offering several package footprints.

NEVB-LOGIC01 footprint adapter board

Key features & benefits

Plug and play: identify the package you will be using, place the device in the footprint and solder the device down to start evaluating




Packages on the board (7)

Package Package name Package information Package description Reference Date
SOT402-1
TSSOP14
(SOT402-1)
TSSOP14 SOT402-1 plastic, thin shrink small outline package; 14 leads; 0.65 mm pitch; 5 mm x 4.4 mm x 1.2 mm body MO-153 (JEDEC) 2023-10-27
SOT360-1
TSSOP20
(SOT360-1)
TSSOP20 SOT360-1 plastic, thin shrink small outline package; 20 leads; 0.65 mm pitch; 6.5 mm x 4.4 mm x 1.2 mm body MO-153 (JEDEC) 2003-02-07
SOT355-1
TSSOP24
(SOT355-1)
TSSOP24 SOT355-1 plastic, thin shrink small outline package; 24 leads; 0.65 mm pitch; 7.8 mm x 4.4 mm x 1.2 mm body MO-153 (JEDEC) 2024-11-07
SOT763-1
DHVQFN16
(SOT763-1)
DHVQFN16 SOT763-1 plastic, leadless dual in-line compatible thermal enhanced very thin quad flat package; 16 terminals; 0.5 mm pitch; 3.5 mm x 2.5 mm x 1 mm body MO-241 (JEDEC) 2003-01-27
SOT764-1
DHVQFN20
(SOT764-1)
DHVQFN20 SOT764-1 plastic, leadless dual in-line compatible thermal enhanced very thin quad flat package; 20 terminals; 0.5 mm pitch; 4.5 mm x 2.5 mm x 1 mm body MO-241 (JEDEC) 2014-12-12
SOT815-1
DHVQFN24
(SOT815-1)
DHVQFN24 SOT815-1 plastic, leadless dual in-line compatible thermal enhanced very thin quad flat package; 24 terminals; 0.5 mm pitch; 5.5 mm x 3.5 mm x 1 mm body 2003-04-29
SOT1174-1
XQFN12
(SOT1174-1)
XQFN12 SOT1174-1 plastic, leadless extremely thin quad flat package; 12 terminals; 0.4 mm pitch; 2 mm x 1.7 mm x 0.5 mm body MO-288 (JEDEC) 2010-04-21

Related boards (3)

Board Description Type Quick links Shop link
NEVB-LOGIC02 footprint adapter board nevb-logic02-footprint-adapter-board NEVB-LOGIC02 footprint adapter board Evaluation board
NEVB-LOGIC03 footprint adapter board nevb-logic03-footprint-adapter-board NEVB-LOGIC03 footprint adapter board Evaluation board

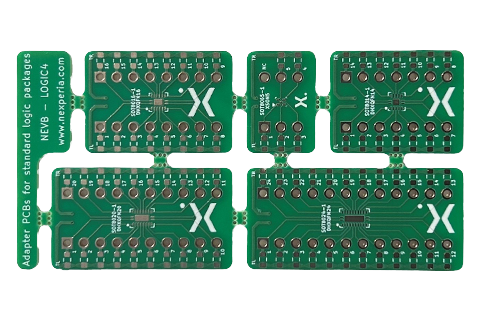

Logic footprint adapter board (NEVB-LOGIC04) nevb-logic04-footprint-adapter-board Logic footprint adapter board (NEVB-LOGIC04) Evaluation board

Packages on the board (7)

Package Package name Package information Package description Reference Date
SOT402-1
TSSOP14
(SOT402-1)
TSSOP14 SOT402-1 plastic, thin shrink small outline package; 14 leads; 0.65 mm pitch; 5 mm x 4.4 mm x 1.2 mm body MO-153 (JEDEC) 2023-10-27
SOT360-1
TSSOP20
(SOT360-1)
TSSOP20 SOT360-1 plastic, thin shrink small outline package; 20 leads; 0.65 mm pitch; 6.5 mm x 4.4 mm x 1.2 mm body MO-153 (JEDEC) 2003-02-07
SOT355-1
TSSOP24
(SOT355-1)
TSSOP24 SOT355-1 plastic, thin shrink small outline package; 24 leads; 0.65 mm pitch; 7.8 mm x 4.4 mm x 1.2 mm body MO-153 (JEDEC) 2024-11-07
SOT763-1
DHVQFN16
(SOT763-1)
DHVQFN16 SOT763-1 plastic, leadless dual in-line compatible thermal enhanced very thin quad flat package; 16 terminals; 0.5 mm pitch; 3.5 mm x 2.5 mm x 1 mm body MO-241 (JEDEC) 2003-01-27
SOT764-1
DHVQFN20
(SOT764-1)
DHVQFN20 SOT764-1 plastic, leadless dual in-line compatible thermal enhanced very thin quad flat package; 20 terminals; 0.5 mm pitch; 4.5 mm x 2.5 mm x 1 mm body MO-241 (JEDEC) 2014-12-12
SOT815-1
DHVQFN24
(SOT815-1)
DHVQFN24 SOT815-1 plastic, leadless dual in-line compatible thermal enhanced very thin quad flat package; 24 terminals; 0.5 mm pitch; 5.5 mm x 3.5 mm x 1 mm body 2003-04-29
SOT1174-1
XQFN12
(SOT1174-1)
XQFN12 SOT1174-1 plastic, leadless extremely thin quad flat package; 12 terminals; 0.4 mm pitch; 2 mm x 1.7 mm x 0.5 mm body MO-288 (JEDEC) 2010-04-21

Related boards (3)

Board Description Type Quick links Shop link
NEVB-LOGIC02 footprint adapter board nevb-logic02-footprint-adapter-board NEVB-LOGIC02 footprint adapter board Evaluation board
NEVB-LOGIC03 footprint adapter board nevb-logic03-footprint-adapter-board NEVB-LOGIC03 footprint adapter board Evaluation board
Logic footprint adapter board (NEVB-LOGIC04) nevb-logic04-footprint-adapter-board Logic footprint adapter board (NEVB-LOGIC04) Evaluation board

Documentation (1)

File name Title Type Date
nexperia_factsheet_dual_in_line_logic_footprint_adapter_boards Dual in-line Logic footprint adapter boards Leaflet 2024-01-24
