Darlington transistors

Fulfil your amplification and switching needs

You can choose from numerous PNP and NPN devices, all delivering very high DC current gain.

Key features and benefits

  • Very high DC current gain (hFE = 20000)
  • High DC collector current
  • VCEO from 30 V to 80 V

Key applications

  • Low and high side switches
  • Audio amplifiers
  • Sensor amplifiers

Parametric search

Darlington transistors
Please wait loading data...
Parametric search is unavailable.

Products

Type number Description Status Quick access
BCV26; BCV46 PNP Darlington transistors ACT
BCV26 PNP Darlington transistors Production
BSP50; BSP51; BSP52 NPN Darlington transistors ACT
BSP50 NPN Darlington transistor Production
BSP50-Q NPN Darlington transistor Production
BSP51 NPN Darlington transistor Production
BSP51-Q NPN Darlington transistor Production
BSP52 NPN Darlington transistor Production
BSP52-Q NPN Darlington transistor Production
BSP60; BSP61; BSP62 PNP Darlington transistors ACT
BSP60 PNP Darlington transistor Production
BSP61 PNP Darlington transistor Production
BSP62 PNP Darlington transistor Production
BSP62-Q PNP Darlington transistor Production
PMBTA13; PMBTA14 NPN Darlington transistors ACT
PMBTA13 NPN Darlington transistors Production
PMBTA14 NPN Darlington transistors Production
BCV27 NPN Darlington transistor Production
BCV27-Q NPN Darlington transistor Production
BCV28 PNP Darlington transistor Production
BCV29 NPN Darlington transistor Production
BCV46 PNP Darlington transistor Production
BCV46-Q PNP Darlington transistor Production
BCV47 NPN Darlington transistor Production
BCV47-Q NPN Darlington transistor Production
BCV48 PNP Darlington transistor Production
BCV48-Q PNP Darlington transistor Production
BCV49 NPN Darlington transistor Production
BCV49-Q NPN Darlington transistor Production
BST50 NPN Darlington transistor Production
BST50-Q NPN Darlington transistor Production
BST51 NPN Darlington transistor Production
BST52 NPN Darlington transistor Production
BST60 PNP Darlington transistor Production
BST60-Q PNP Darlington transistor Production
BST61 PNP Darlington transistor Production
BST62 PNP Darlington transistor Production
PMBTA64 PNP Darlington transistor Production
PXTA14 NPN Darlington transistor Production
PZTA14 NPN Darlington transistor Production
PZTA14-Q NPN Darlington transistor Production
Visit our documentation center for all documentation

Marcom graphics (1)
File name Title Type Date

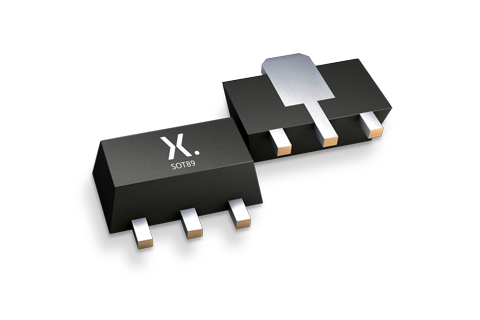

SOT89_mk plastic, surface-mounted package; 3 leads; 1.5 mm pitch; 4.5 mm x 2.5 mm x 1.5 mm body Marcom graphics 2017-01-28

Selection guide (1)
File name Title Type Date
Nexperia_Selection_guide_2023 Nexperia Selection Guide 2023 Selection guide 2023-05-10
