Automotive recovery rectifiers

High efficiency, space-saving devices

Our 200 – 400 V standard (trr > 500 ns) and ultra-fast / hyper-fast (trr < 20 ns) recovery rectifiers deliver power density while minimizing reverse recovery time and loss.

Housed in our automotive qualified copper clip-bond CFP package, these standard and ultra-fast / hyper-fast recovery diodes deliver high current pulse capability and high power density with efficient switching in a space-saving footprint.

  • Parametric search
  • Details
  • Parametric search
  • Products
  • Documentation
  • Datasheets
  • Support
  • Cross reference

Key features and benefits

  • 1 mm package height for thin PCB designs
  • Up to 60% footprint savings - CFP compared to SMx
  • High current pulse capability due to solid copper clip-bond
  • High efficiency planar technology / High power density
  • Low magnetic inductance optimizes switching behavior
  • 200 V hyper-fast switching parts with optimized recovery time (trr) of < 20 ns
  • High speed switching capability
  • Low voltage drop (VF @ IF(max) ~ 1 V)
  • Low leakage current, also at high temperature
  • AEC-Q101 qualified parts (175 °C Tj (max))

Key applications

  • Polarity protection
  • DC/DC conversion
  • AC/DC conversion
  • Freewheeling of inductive load
  • Standard switching applications
  • High-speed switching applications
  • Engine and Transmission Control Unit
  • Solenoid control
  • Piezo injection

Latest news and blogs

  • Blog article
Sep 10, 2021

Tough at the top

  • Press release
Sep 10, 2021

Nexperia surface-mount device passes Board Level ...

Latest videos

Nexperia’s CFP2-HP delivers high thermal performance in a small footprint

Nexperia’s CFP2-HP delivers high thermal performance in a ...
Maximize SMPS efficiency with Nexperia’s 200 V PNE recovery ...
Improve accuracy of AOI in PCB production by using modern ...
Improve accuracy of AOI in PCB production by using modern ...

Parametric search

Automotive recovery rectifiers
Please wait loading data...
Parametric search is unavailable.

How to use parametric search?

  • You can choose the number of results per page: 10, 25, 50, 100 or all results.
  • You can use the filters in the second row to narrow down the selection. Click on one or more values in the lists you want to select. Or use the sliders by dragging the handlers or fill in the fields.
  • The common characteristics are parameters with the same value for all type numbers.
  • You can find more information about a type number by hovering over the type number and click on one of the links in the pop-up.
  • You can compare two or more type numbers by selection the checkboxes for the type numbers and click on Compare. All other rows will be hidden.
  • To hide the row with filtering options, click on the grey bar with arrows below the options.
  • To add or remove columns with parameters click on the Add/Remove parameters button on the top right. You can check the columns you want to see.
  • You can change the order of the columns by dragging and dropping the columns to the desired position.
  • You can download the results of your (filtered) selection to Excel by clicking the Download Excel button.

Products

Type number Description Status Quick access
PNE200100CPE-Q 200 V, 2 x 5 A dual common cathode hyperfast recovery rectifier Production
  • Download datasheet
PNE20010ER 200 V, 1 A hyperfast recovery rectifier Production
  • Download datasheet
PNE20010EXD-Q 200 V, 1 A hyperfast recovery rectifier Production
  • Download datasheet
PNE20020EP 200 V, 2 A hyperfast recovery rectifier Production
  • Download datasheet
PNE20020ER 200 V, 2 A hyperfast recovery rectifier Production
  • Download datasheet
PNE20030EP 200 V, 3 A hyperfast recovery rectifier Production
  • Download datasheet
PNE20040CPE-Q 200 V, 2 x 2 A dual common cathode hyperfast recovery rectifier Production
  • Download datasheet
PNE20060CPE-Q 200 V, 2 x 3 A dual common cathode hyperfast recovery rectifier Production
  • Download datasheet
PNE20060EPE-Q 200 V, 6 A hyperfast recovery rectifier Production
  • Download datasheet
PNE20080CPE-Q 200 V, 2 x 4 A dual common cathode hyperfast recovery rectifier Production
  • Download datasheet
PNS40010ER 400 V, 1 A high power density, standard switching time recovery rectifier Production
  • Download datasheet
  • Samples
Visit our documentation center for all documentation

Brochure (1)

File name Title Type Date
Nexperia_document_brochure_Recovery_rectifier Hyperfast recovery, space-saving devices Brochure 2022-05-13

Leaflet (1)

File name Title Type Date
Nexperia_Document_Leaflet_recovery_rectifiers_CHN_2020 恢复整流器 Leaflet 2020-03-16

Marcom graphics (1)

File name Title Type Date

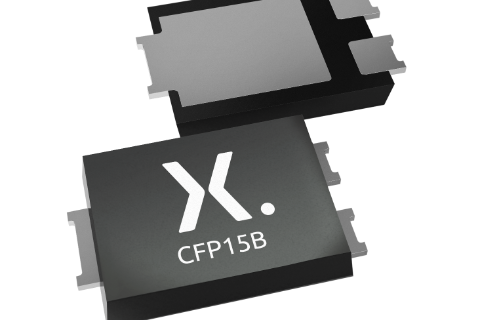

RS2961_RS2619_CFP15B-Combi CFP15B 3D package MARCOM image Marcom graphics 2021-11-25
