ASFETs for DC Motor Control

Efficiency, power density, max current and Qrr

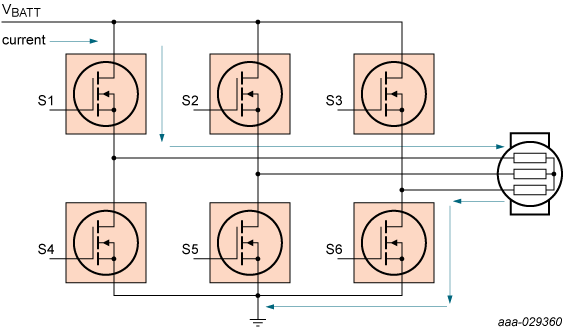

From drones, household appliances and power tools right up to golf carts and forklift trucks, powerful PWM driven brushless DC motors have become the norm. With such a diverse range, different applications require different optimizations. Often small battery driven applications need to be extremely efficient in terms of power, size and noise. Alternatively, balanced current-sharing can be key for large multi-cell mobility systems where multiple MOSFETs are used in parallel. With LFPAK’s industry leading board level reliability easily handling any vibrations / shocks, Nexperia gives you the power to keep your motor running.

ASFETs for DC Motor Control are designed to meet the needs of a range of DC motors:

  • ID max – to protect during fault conditions or during high torque start up situations
  • Parallel current sharing – for 48 V high-power multi-cell applications such as golf carts and forklift trucks
  • VDS 50-55 V – optimized for the growing number of 36 V DC motors for everything from chainsaws and hedge-trimmers to ebikes and scooters
  • Range of package sizes - for motors operating in space constrained or thermally challenging environments.




Featured products

PSMN1R0-30YLD

PSMN1R5-40YSD

PSMN1R0-40YLD

N-channel 30 V, 1.0 mΩ, 300 A logic level MOSFET in LFPAK56 N-channel 40 V, 1.5 mΩ, 240 A standard level MOSFET in LFPAK56 N-channel 40 V, 1.1 mΩ, 280 A logic level MOSFET in LFPAK56



Latest news and blogs

Parametric search

ASFETs for DC Motor Control
Please wait loading data...
Parametric search is unavailable.

Products

Type number Description Status Quick access
PSMN0R9-30ULD N-channel 30 V, 0.87 mΩ, 300 A logic level MOSFET in SOT1023A enhanced package for UL2595, using NextPowerS3 Schottky-Plus Technology Production
PSMN0R9-30YLD N-channel 30 V, 0.87 mΩ, 300 A logic level MOSFET in LFPAK56 using NextPowerS3 Technology Production
PSMN1R0-40ULD N-channel 40 V, 1.1 mΩ, 280 A logic level MOSFET in SOT1023A enhanced package for UL2595, using NextPower-S3 Schottky-Plus technology Production
PSMN1R4-30YLD N-channel 30 V, 1.4 mΩ logic level MOSFET in LFPAK56 using NextPowerS3 Technology Production
PSMN1R6-30MLH N-channel 30 V, 1.9 mΩ, 160 A logic level MOSFET in LFPAK33 using NextPowerS3 technology Production
PSMN1R7-40YLD N-channel 40 V, 1.8 mΩ, 200 A logic level MOSFET in LFPAK56 using NextPower-S3 Schottky-Plus technology Production
PSMN2R4-30YLD N-channel 30 V, 2.4 mΩ logic level MOSFET in LFPAK56 using NextPowerS3 Technology Production
PSMN4R0-60YS N-channel LFPAK 60 V, 4.0 mΩ standard level FET Production
PSMN4R1-60YL N-channel 60 V, 4.1 mΩ logic level MOSFET in LFPAK56 Production
PSMN5R5-60YS N-channel LFPAK 60 V, 5.2 mΩ standard level FET Production
PSMN6R9-100YSF NextPower 100 V, 7 mΩ N-channel MOSFET in LFPAK56 package Production
PSMN8R7-100YSF NextPower 100 V, 9 mΩ N-channel MOSFET in LFPAK56 package Production
Visit our documentation center for all documentation

Application note (2)

File name Title Type Date
AN90016 Maximum continuous currents in NEXPERIA LFPAK power MOSFETs Application note 2020-09-03
AN90001 Designing in MOSFETs for safe and reliable gate-drive operation Application note 2017-05-05
