NEVB-NID1100 1.5 V to 5.5 V, 1 A, Ideal Diode with Forward Voltage Blocking Evaluation Board

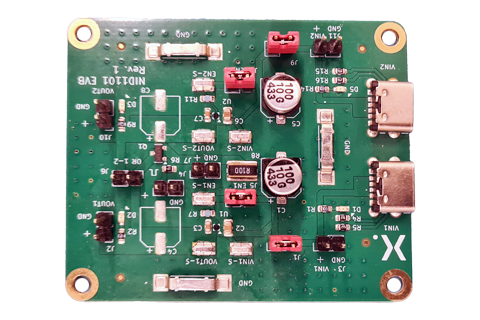

The NEVB-NID1100 evaluation board is a two-layer PCB equipped with two NID1100 ideal diodes and one PMOS transistor. It allows users to explore the device's behavior under various application conditions.
Key features & benefits
- Input operating voltage range (VIN) 1.5 V to 5.5 V
- Continuous output current 1 A
- Three supply inputs VIN1, VIN2, VIN3
- Two optional USB-C supply inputs for VIN1 and VIN2
- Access to all device pins
- Use case selection by means of jumpers
- Short circuit testing
