650 V cascode GaN FETs

Performance, efficiency, reliability

The very high electron mobility of GaN enables the creation of devices with low on-resistance and exceptionally high switching frequency capability. These advantages are vital in next-generation power systems, such as industry 4.0 and renewable energy applications. Nexperia cascode GaN FETs are the enabler in these applications offering high power density, high performance, and high switching frequency. This unique solution facilitates the ease of driving the devices using well-known Si MOSFET gate drivers. Additionally, they deliver unmatched high junction temperature (Tj [max] 175 °C), ease of design freedom and improved reliability of power systems.

Parametric search

650 V cascode GaN FETs
Please wait loading data...
Parametric search is unavailable.

Products

Type number Description Status Quick access
GAN039-650NBB 650 V, 33 mOhm Gallium Nitride (GaN) FET in a CCPAK1212 package Qualification
GAN039-650NTB 650 V, 33 mOhm Gallium Nitride (GaN) FET in a CCPAK1212i package Production
GAN041-650WSB 650 V, 35 mΩ Gallium Nitride (GaN) FET in a TO-247 package Production
GAN063-650WSA 650 V, 50 mΩ Gallium Nitride (GaN) FET Production
Visit our documentation center for all documentation

Application note (5)

File name Title Type Date
AN90030_translated ハーフブリッジ・トポロジーにおけるNexperia製GaN FETの並列 Application note 2023-04-03
AN90030 Paralleling of Nexperia cascode GaN FETs in half-bridge topology Application note 2023-03-22
AN90005 Understanding Power GaN FET data sheet parameters Application note 2020-06-08
AN90006 Circuit design and PCB layout recommendations for GaN FET half bridges Application note 2019-11-15
AN90004 Probing considerations for fast switching applications Application note 2019-11-15

Leaflet (4)

File name Title Type Date
nexperia_document_leaflet_GaN_CCPAK_2023_CHN CCPAK GaN FETs Chinese Leaflet 2023-10-25
nexperia_document_leaflet_GaN_CCPAK_2023 CCPAK GaN FETs Leaflet 2023-10-25
nexperia_document_leaflet_GaNFETs_2023_CHN Power GaN FETs leaflet Leaflet 2023-10-25
nexperia_document_leaflet_GaNFETs_2023 Power GaN FETs leaflet Leaflet 2023-10-25

Marcom graphics (1)

File name Title Type Date

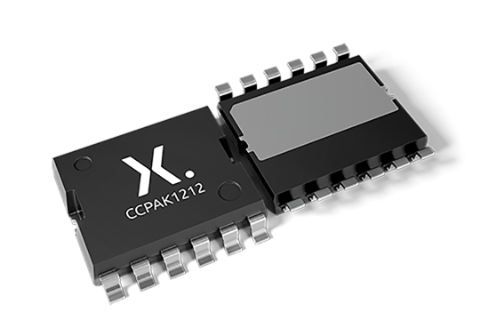

CCPAK1212_SOT8000-Combi_mk Plastic, surface mounted copper clip package (CCPAK1212); 13 terminals; 2.0 mm pitch, 12 mm x 12 mm x 2.5 mm body Marcom graphics 2023-04-20
