Featured products
Key features and benefits
- Large portfolio
- One stop supplier
- Low power
- High reliability
- High quality
- Low ppm
- AEC-Q100 grade 1
- AEC-Q006 for copper wire
- Operates up to 125 °C
Key applications
- Engine control units
- Body control modules
- Transmission control units
- Electronic instrument clusters
Latest news and blogs
Parametric search
Automotive logic
Please wait, loading data... Parametric search is unavailable.
Products
| Type number | Description | Status | Quick access |
|---|---|---|---|
| 74AHC1G17GZ-Q100 | Single Schmitt trigger buffer | Production | |
| 74AHCT1G17GZ-Q100 | Single Schmitt trigger buffer | Production | |
| 74AUP1G11GW-Q100 | Low-power 3-input AND gate | Production | |
| 74AUP2G125DC-Q100 | Low-power dual buffer/line driver; 3-state | Production | |
| 74CBTLV3257DS-Q100 | Quad 1-of-2 multiplexer/demultiplexer | EndOfLife | |
| 74CBTLV3861PW-Q100 | 10-bit bus switch with output enable | Production | |
| 74HCT20D-Q100 | EndOfLife | ||
| 74HCT4002D-Q100 | EndOfLife | ||
| 74LV123D-Q100 | Dual retriggerable monostable multivibrator with reset | Production | |
| 74LV123PW-Q100 | Dual retriggerable monostable multivibrator with reset | Production | |
| 74LV1T08GW-Q100 | 2-input single supply translating AND gate | Production | |
| 74LVC1G04GZ-Q100 | Single inverter | Production | |
| 74LVC1G157GM-Q100 | Single 2-input multiplexer | Production | |
| 74LVC1G384GZ-Q100 | Bilateral switch | Production | |
| 74LVC1G79GZ-Q100 | Single D-type flip-flop; positive-edge trigger | Production | |
| 74LVT162244BDGG-Q100 | 3.3 V 16-bit buffer/driver with 30 Ohm termination resistors; 3-state | Production | |
| LSF0101GW-Q100 | 1-bit bidirectional multi-voltage level translator; open-drain; push-pull | Production | |
| LSF0102DC-Q100 | 2-bit bidirectional multi-voltage level translator; open-drain; push-pull | Production | |
| LSF0102DP-Q100 | 2-bit bidirectional multi-voltage level translator; open-drain; push-pull | Production | |
| NMUX1308ABQ-Q100 | 1.5 V to 5.5 V, 8-channel analog switch multiplexer and demultiplexer with injection-current control | Production | |
| NMUX1308APW-Q100 | 1.5 V to 5.5 V, 8-channel analog switch multiplexer and demultiplexer with injection-current control | Production | |
| NMUX1309ABQ-Q100 | 1.5 V to 5.5 V, dual 4-channel switch analog multiplexer and demultiplexer with injection-current control | Production | |
| NMUX1309APW-Q100 | 1.5 V to 5.5 V, dual 4-channel switch analog multiplexer and demultiplexer with injection-current control | Production | |
| NMUX27518BY-Q100 | 6-channel, 1-of-2 multiplexer and demultiplexer | Production | |
| NMUX27518EBY-Q100 | 6-channel, 1-of-2 multiplexer and demultiplexer | Production | |
| NMUX27518EPW-Q100 | 6-channel, 1-of-2 multiplexer and demultiplexer | Production | |
| NMUX27518PW-Q100 | 6-channel, 1-of-2 multiplexer and demultiplexer | Production | |
| NXS0101GW-Q100 | Dual supply translating transceiver; open drain; auto direction sensing | Production | |
| NXT4558GU-Q100 | SIM card interface level translator with enable pin | Production | |
| NXU0101GM-Q100 | 1-bit dual-supply buffer/level translator with Schmitt-trigger; 3-state | Production | |
| NXU0101GS-Q100 | 1-bit dual-supply buffer/level translator with Schmitt-trigger; 3-state | Production | |
| NXU0101GW-Q100 | 1-bit dual-supply buffer/level translator with Schmitt-trigger; 3-state | Production | |
| NXU0102DC-Q100 | 2-bit dual-supply buffer/level translator with Schmitt-trigger; 3-state | Production | |
| NXU0102GT-Q100 | 2-bit dual-supply buffer/level translator with Schmitt-trigger; 3-state | Production | |
| NXU0202DC-Q100 | 2-bit dual-supply buffer/level translator with Schmitt-trigger; 3-state | Production | |
| NXU0202GT-Q100 | 2-bit dual-supply buffer/level translator with Schmitt-trigger; 3-state | Production | |
| XS3A2467PW-Q100 | Dual low-ohmic double-pole double-throw analog switch | Production |
Visit our documentation center for all documentation
Application note (1) |
|||
|---|---|---|---|
| File name | Title | Type | Date |
| AN263.pdf | Power considerations when using CMOS and BiCMOS logic devices | Application note | 2023-02-07 |
Brochure (1) |
|||
| File name | Title | Type | Date |
| Nexperia_LOGIC_Handbook_201029.pdf | Logic Application Handbook - Design Engineers Guide | Brochure | 2020-10-30 |
Leaflet (4) |
|||
| File name | Title | Type | Date |
| SIM_card_NXT4558_NXT4559_leaflet.pdf | SIM card interface level translators | Leaflet | 2024-06-28 |
| Nexperia_document_leaflet_Logic_NPIC_ShiftRegisters_201906.pdf | NPIC Logic Shift Registers | Leaflet | 2019-07-12 |

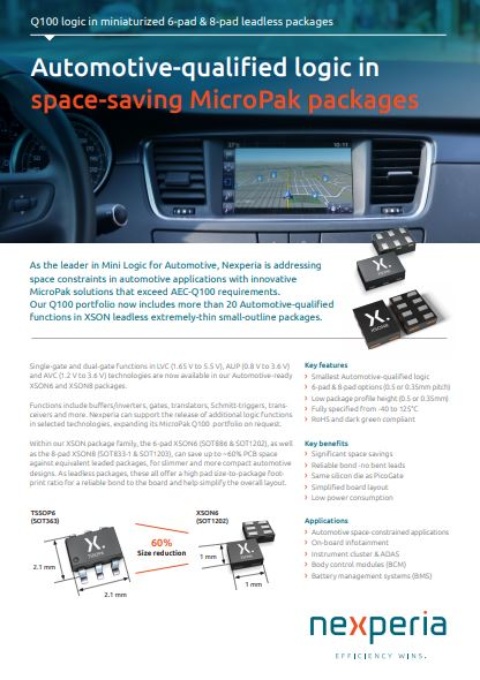

| Nexperia_document_leaflet_Logic_Automotive_MicroPak_solutions_201904.pdf | Automotive logic in MicroPak leadless packages | Leaflet | 2019-04-18 |

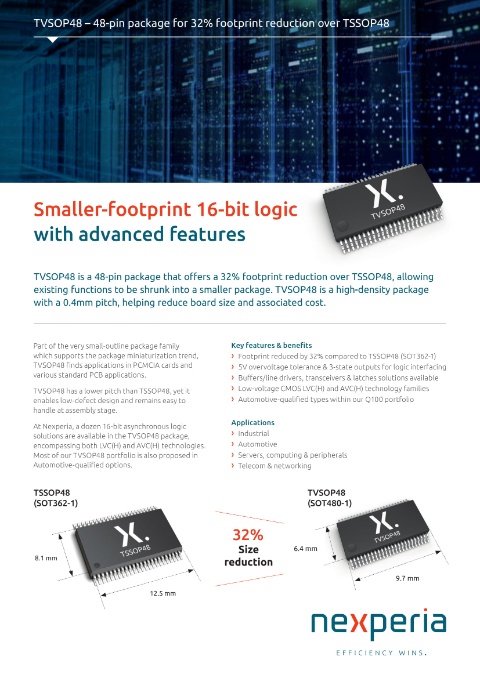

| Nexperia_document_leaflet_Logic_TVSOP48_16bitPortfolio_201903.pdf | Smaller-footprint 16-bit logic with advanced features | Leaflet | 2019-03-29 |
Marcom graphics (1) |
|||
| File name | Title | Type | Date |
| DHVQFN16_SOT763-1_dimple_mk.png | plastic, thermal enhanced extremely thin small outline package; no leads; 5 terminals; 0.48 mm pitch; 0.8 mm x 0.8 mm x 0.35 mm body with dimples | Marcom graphics | 2018-02-26 |
Selection guide (1) |
|||
| File name | Title | Type | Date |
| nexperia_automotive_selection_guide_LR_201902.pdf | Nexperia Automotive Selection Guide 2019 | Selection guide | 2019-02-18 |
White paper (1) |
|||
| File name | Title | Type | Date |
| Nexperia_document_whitepaper_FloatingInputs_Logic_BusHold_201909.pdf | Addressing floating inputs in digital systems (Bus Hold) | White paper | 2019-10-01 |
