Automotive recovery rectifiers

High efficiency, space-saving devices

Our 200 - 650 V hyperfast (trr < 30 ns) and ultrafast (trr < 80 ns) recovery rectifiers deliver power density while minimizing reverse recovery time and loss.

Housed in our automotive qualified copper clip-bond CFP package, these standard and ultra-fast / hyper-fast recovery diodes deliver high current pulse capability and high power density with efficient switching in a space-saving footprint.

Key features and benefits

  • 1 mm package height for thin PCB designs
  • Up to 60% footprint savings - CFP compared to SMx
  • High current pulse capability due to solid copper clip-bond
  • High efficiency planar technology / High power density
  • Low magnetic inductance optimizes switching behavior
  • 200 V hyper-fast switching parts with optimized recovery time (trr) of < 20 ns
  • High speed switching capability
  • Low voltage drop (VF @ IF(max) ~ 1 V)
  • Low leakage current, also at high temperature
  • AEC-Q101 qualified parts (175 °C Tj (max))

Key applications

  • Polarity protection
  • DC/DC conversion
  • AC/DC conversion
  • Freewheeling of inductive load
  • Standard switching applications
  • High-speed switching applications
  • Engine and Transmission Control Unit
  • Solenoid control
  • Piezo injection

Parametric search

Automotive recovery rectifiers
Please wait loading data...
Parametric search is unavailable.

Products

Type number Description Status Quick access
PNS40010ER 400 V, 1 A high power density, standard switching time recovery rectifier EndOfLife
PNE20060EPE-Q 200 V, 6 A hyperfast recovery rectifier Production
PNE20040CPE-Q 200 V, 2 x 2 A dual common cathode hyperfast recovery rectifier Production
PNE200100CPE-Q 200 V, 2 x 5 A dual common cathode hyperfast recovery rectifier Production
PNE20010EXD-Q 200 V, 1 A hyperfast recovery rectifier Production
PNE200100EPE-Q 200 V, 10 A hyperfast recovery rectifier Production
PNE20040EPE-Q 200 V, 4 A hyperfast recovery rectifier Production
PNE20060CPE-Q 200 V, 2 x 3 A dual common cathode hyperfast recovery rectifier Production
PNU65010ER-Q 650 V, 1 A ultrafast recovery rectifier Production
PNE20020AER-Q 200 V, 2 A hyperfast recovery rectifier Production
PNE20050EP-Q 200 V, 5 A hyperfast recovery rectifier Production
PNU65010EP-Q 650 V, 1 A ultrafast recovery rectifier Production
PNE20030EP-Q 200 V, 3 A hyperfast  recovery rectifier Production
PNE20040EP-Q 200 V, 4 A hyperfast switching recovery rectifier Production
PNE650100EJ-Q 650 V, 10 A hyperfast recovery rectifier Production
PNE20020EP-Q 200 V, 2 A hyperfast recovery rectifier Production
PNE20010ER-Q 200 V, 1 A hyperfast recovery rectifier Production
PNE20020ER-Q 200 V, 2 A hyperfast recovery rectifier Production
PNE20080CPE-Q 200 V, 2 x 4 A dual common cathode hyperfast recovery rectifier Production
PNU65020EP-Q 650 V, 2 A ultrafast recovery rectifier Production
PNU650150AEJ-Q 650 V, 15 A ultrafast recovery rectifier Production
PNE20080EPE-Q 200 V, 8 A hyperfast recovery rectifier Production
PNU650100EJ-Q 650 V, 10 A ultrafast recovery rectifier Production
PNE650200EJ-Q 650 V, 20 A hyperfast recovery rectifier Production
PNS40010AER-Q 400 V, 1 A high power density, standard switching time recovery rectifier Production
PNU650300AEJ-Q 650 V, 30 A ultrafast recovery rectifier Production
PNU650150EJ-Q 650 V, 15 A ultrafast recovery rectifier Production
PNU65030EP-Q 650 V, 3 A ultrafast recovery rectifier Production
PNE650150EJ-Q 650 V, 15 A hyperfast recovery rectifier Production
PNE20020EXD-Q 200 V, 2 A hyperfast recovery rectifier Production
PNU650200AEJ-Q 650 V, 20 A ultrafast recovery rectifier Production
PNU650200EJ-Q 650 V, 20 A ultrafast recovery rectifier Production
Visit our documentation center for all documentation

Brochure (1)

File name Title Type Date
Nexperia_document_brochure_Recovery_rectifier.pdf Hyperfast recovery, space-saving devices Brochure 2024-05-08

Data sheet (4)

File name Title Type Date
PNU65010EP-Q.pdf 650 V, 1 A ultrafast recovery rectifier Data sheet 2022-10-18
PNU65010ER.pdf 650 V, 1 A ultrafast  recovery rectifier Data sheet 2022-09-30
PNU65010ER-Q.pdf 650 V, 1 A ultrafast recovery rectifier Data sheet 2022-09-30
PNU65010EP.pdf 650 V, 1 A ultrafast recovery rectifier Data sheet 2022-09-30

Leaflet (1)

File name Title Type Date
Nexperia_Document_Leaflet_recovery_rectifiers_CHN_2020.pdf 恢复整流器 Leaflet 2020-03-16

Marcom graphics (1)

File name Title Type Date

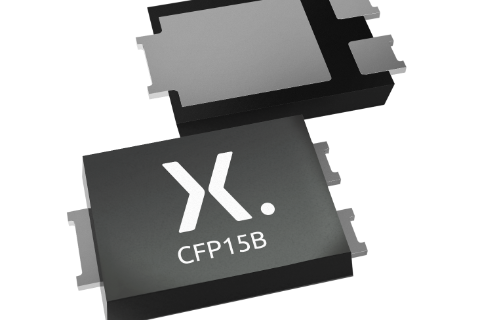

RS2961_RS2619_CFP15B-Combi.png CFP15B 3D package MARCOM image Marcom graphics 2021-11-25

Selection guide (1)

File name Title Type Date
Nexperia_Selection_guide_2023.pdf Nexperia Selection Guide 2023 Selection guide 2023-05-10
