Trench Schottky rectifiers

Delivering high system efficiency and reducing risk of thermal runaway

Nexperia AEC-Q101 rated Trench Schottky rectifiers meet the challenging demands of efficient and space-saving designs. They combine low forward voltage, reverse current and very low Qrr to enable best efficiency at high switching speeds and high ambient temperatures. Available in clip-bond packages with excellent power capabilities.

Key features and benefits

  • Low forward voltage
  • Low Qrr and low IRM
  • Low leakage current
  • High power capability due to clip-bonding technology
  • Small and flat lead SMD power plastic package
  • AEC-Q101 qualified

Key applications

  • High efficiency DC-to-DC conversion
  • Automotive LED lighting
  • Switch mode power supply
  • Freewheeling application
  • Reverse polarity protection
  • OR-ing

Parametric search

Trench Schottky rectifiers
Please wait loading data...
Parametric search is unavailable.

Products

Type number Description Status Quick access
PMEG045T030EPD 45 V, 3 A low VF Trench MEGA Schottky barrier rectifier Production
PMEG045T050EPD 45 V, 5 A low VF Trench MEGA Schottky barrier rectifier Production
PMEG045T100EPE 45 V, 10 A low VF Trench MEGA Schottky barrier rectifier Production
PMEG045T100EPE-Q 45 V, 10 A low VF Trench MEGA Schottky barrier rectifier Production
PMEG045T150EIPD 45 V, 15 A low VF Trench MEGA Schottky barrier rectifier Production
PMEG045T150EPD 45 V, 15 A low VF Trench MEGA Schottky barrier rectifier Production
PMEG050T150EIPD 50 V, 15 A low VF Trench MEGA Schottky barrier rectifier Production
PMEG050T150EPD 50V, 15 A low VF Trench MEGA Schottky barrier rectifier Production
PMEG060T030ELPE 60 V, 3 A low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG060T030ELPE-Q 60 V, 3 A low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG060T040CLPE 60 V, 2 x 2 A dual common cathode low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG060T040CLPE-Q 60 V, 2 x 2 A dual common cathode low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG060T050ELPE 60 V, 5 A low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG060T050ELPE-Q 60 V, 5 A low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG060T060CLPE 60 V, 2 x 3 A dual common cathode low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG060T060CLPE-Q 60 V, 2 x 3 A dual common cathode low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG060T080CLPE 60 V, 2 x 4 A dual common cathode low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG060T080CLPE-Q 60 V, 2 x 4 A dual common cathode low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG060T100CLPE 60 V, 2 x 5 A dual common cathode low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG060T100CLPE-Q 60 V, 2 x 5 A dual common cathode low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG100T030ELPE 100 V, 3 A low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG100T030ELPE-Q 100 V, 3 A low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG100T050ELPE 100 V, 5 A low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG100T050ELPE-Q 100 V, 5 A low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG100T080ELPE 100 V, 8 A low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG100T080ELPE-Q 100 V, 8 A low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG100T100ELPE 100 V, 10 A low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG100T100ELPE-Q 100 V, 10 A low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG100T10ELR 100 V, 1 A low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG100T10ELR-Q 100 V, 1 A low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG100T20ELP 100 V, 2 A low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG100T20ELP-Q 100 V, 2 A low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG100T20ELR 100 V, 2 A low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG100T20ELR-Q 100 V, 2 A low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG100T30ELP 100 V, 3 A low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG100T30ELP-Q 100 V, 3 A low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG100T30ELR 100 V, 3 A low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG100T30ELR-Q 100 V, 3 A low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG100T50ELP 100 V, 5 A low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG100T50ELP-Q 100 V, 5 A low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG40T10ER 40 V, 1 A low VF Trench MEGA Schottky barrier rectifier Production
PMEG40T20EP 40 V, 2 A low VF Trench MEGA Schottky barrier rectifier Production
PMEG40T20ER 40 V, 2 A low VF Trench MEGA Schottky barrier rectifier Production
PMEG40T30EP 40 V, 3 A low VF Trench MEGA Schottky barrier rectifier Production
PMEG40T30ER 40 V, 3 A low Trench MEGA Schottky barrier rectifier Production
PMEG40T50EP 40 V, 5 A low VF Trench MEGA Schottky barrier rectifier Production
PMEG45T15EPD 45 V, 15 A low VF Trench MEGA Schottky barrier rectifier Production
PMEG45T20EXD 45 V, 2 A Trench MEGA Schottky barrier rectifier Production
PMEG45T20EXD-Q 45 V, 2 A Trench MEGA Schottky barrier rectifier Production
PMEG60T10ELP 60 V, 1 A low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG60T10ELR 60 V, 1 A low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG60T20ELP 60 V, 2 A low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG60T20ELR 60 V, 2 A low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG60T30ELP 60 V, 3 A low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG60T30ELR 60 V, 3 A low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG60T50ELP 60 V, 5 A low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG60T50ELP-Q 60 V, 5 A low leakage current Trench MEGA Schottky barrier rectifier Production
Visit our documentation center for all documentation

Leaflet (1)

File name Title Type Date

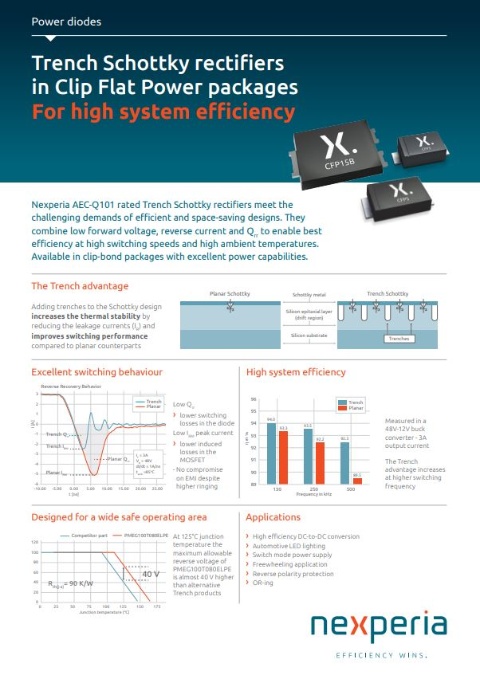

Nexperia_document_leaflet_Trench_Schottky_rectifiers_2021 Trench Schottky rectifiers in Clip Flat Power packages for high system efficiency Leaflet 2021-04-28

Marcom graphics (1)

File name Title Type Date

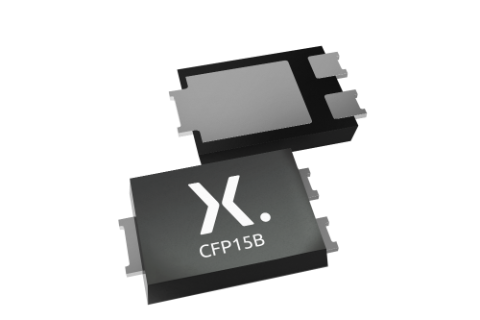

RS2619_CFP15B_Combi CFP15B package 3D image Marcom graphics 2021-04-30

White paper (2)

File name Title Type Date
nexperia_whitepaper_trench_schottky_rectifiers_Japanese Nexperia Whitepaper Trench Schottky Rectifiers Japanese White paper 2021-07-13
Nexperia_document_whitepaper_Schottky_rectifier_comparison_2021_HR Trench Schottky Rectifier functioning, benefits and use cases White paper 2021-05-26
