80 PLUS Titanium Industrial PSU (GaN-based)

Industrial power supplies (PSUs) cover a very broad range of power requirements. Specifically for those industrial PSUs operating at 2-3 kW, 24/7 efficiency is critical, but so is space, Bill of Materials and operating cost. The 80 PLUS Titanium certification guarantees efficiencies of between 90% and 96% with 10-100% loading. To make these devices even more efficient, robust and smaller, 650 V GaN FETs are giving 80 PLUS Titanium PSUs the boost they need.

  • Overview

Block diagrams

Highlighted components are Nexperia focus products

Products

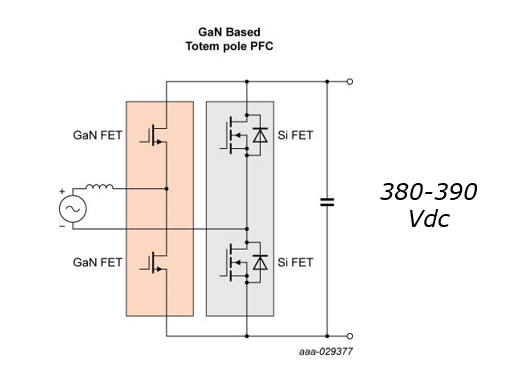

  • Totem pole: 650 V GaN FETs
  • Totem pole - 100 / 150 V MOSFET

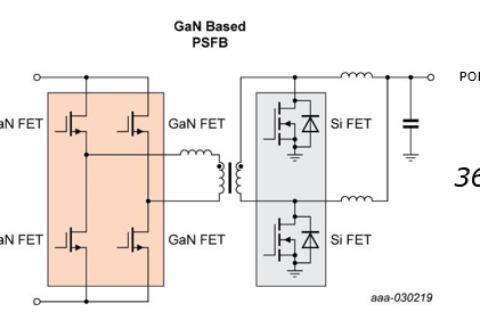

  • DC/DC Primary side: 650V GaN FETs
  • PSFB Sec. side MOSFETs: 100 / 150 V

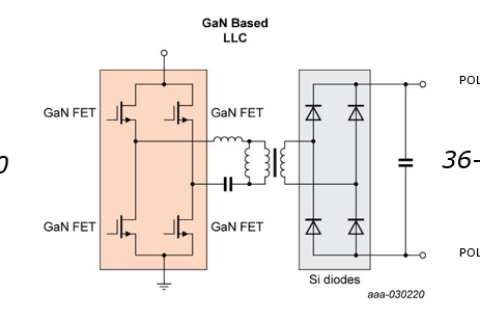

  • LLC HV Sec. side Schottky diodes: 100 V
  • Bus switches: CBTLV family
  • Control logic gates: LVC family

Design considerations

  • Parallel system
  • Higher efficiency
  • Improved robustness and increased power density
  • Smaller form factor and increased miniaturization
  • Simplified gate drive requirements
  • Reduced BoM and smaller magnetics
  • Higher operating frequency

GaN FETs help push 80 PLUS Titanium grade

Since its introduction, 80 PLUS certification has become key for many industrial PSU applications given their need for 24/7 efficiency, across a range of loadings. With many industrial power supplies 24/7 efficiency is critical and Nexperia’s 650 V GaN FETs give 80 PLUS Titanium PSUs the boost they need.

Read more...

Power GaN FETs - Performance, efficiency, reliability

Download the brochure to find out more about our GaN FET technology and performance
