High power, high efficiency DC/DC converter

By using a high efficiency boost circuit this 12 V to 80 V converter design delivers high power while saving energy.

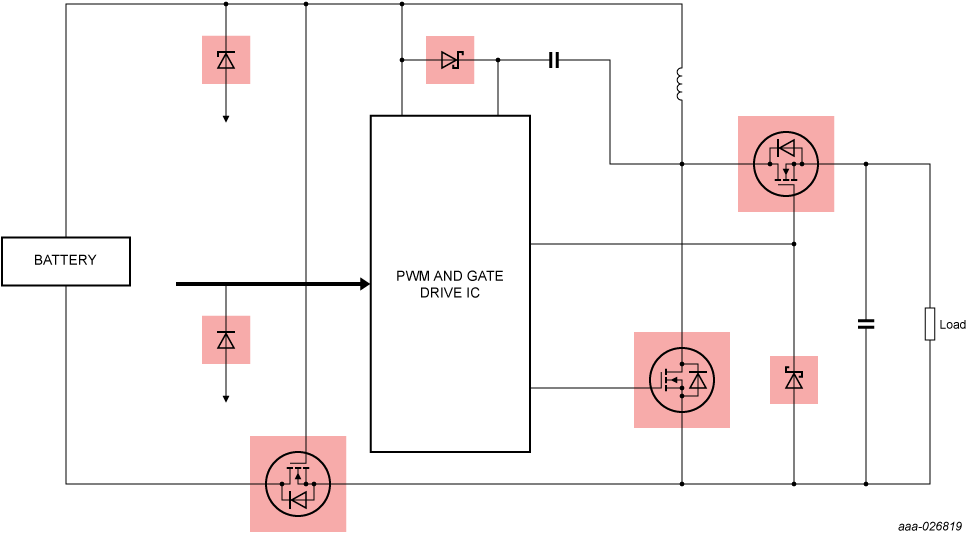

Block diagram

Highlighted components are Nexperia focus products

Design considerations

  • Point of load non-isolated DC.DC
  • Synchronous topology
  • Uses a dedicated Schottky rather than rely on the body diode of the MOSFET to ensure high efficiency performance
