DFN2020MD-6

Advanced power capability in a 2 mm x 2 mm footprint

They take up only 4 mm² mounting area but have similar thermal resistance as a standard SO8. Optimized for switching performance and low RDSon, this family of products is ideal for battery/charger switching and DC/DC converters in portable applications.

Discover Nexperia's extensive range of high-performance, low RDSon MOSFETs in small form factors - DFN packages save >50 % space at same electrical performance of larger gullwing packages. The single package DFN2020MD-6 comes with tin-plated solderable side pads ("wettable flanks") for easy soldering inspection.

Table 1. Available package versions DFN2020MD-6 and DFN2020-6

Package

Package name

Dimension (mm)

Applications




DFN2020MD-6

(SOT1220)

2.0 x 2.0 x 0.65

  • Relay driver

  • High-speed line driver

  • Low-side loadswitch

  • Switching circuits



DFN2020-6

(SOT1118)

2.0 x 2.0 x 0.65

Key features and benefits

  • N-channel and P-channel
  • Low RDSon down to 10 mΩ
  • ID up to 13 A
  • Low voltage drive (VGS(th) = 0.65 V typ.)
  • Voltage range of 12 to 100 V
  • ESD protection of more than 3 kV

Related package information:

Parametric search

DFN2020MD-6
Please wait loading data...
Parametric search is unavailable.

Products

Type number Description Status Quick access
BUK6D120-60P 60 V, P-channel Trench MOSFET Production
BUK6D23-40E 40 V, N-channel Trench MOSFET Production
BUK6D43-40P 40 V, P-channel Trench MOSFET Production
BUK6D43-60E 60 V, N-channel Trench MOSFET Production
BUK7D25-40E 40 V, N-channel Trench MOSFET Production
BUK9D23-40E 40 V, N-channel Trench MOSFET Production
PMC85XP 30 V P-channel MOSFET with pre-biased NPN transistor Production
PMCPB5530X 20 V, complementary Trench MOSFET Production
PMDPB30XN 20 V, dual N-channel Trench MOSFET Production
PMDPB55XP 20 V, dual P-channel Trench MOSFET Production
PMDPB56XNEA 30 V, dual N-channel Trench MOSFET Production
PMDPB58UPE 20 V dual P-channel Trench MOSFET Production
PMDPB70XP 30 V, dual P-channel Trench MOSFET Production
PMDPB70XPE 20 V dual P-channel Trench MOSFET Production
PMDPB80XP 20 V, dual P-channel Trench MOSFET Production
PMDPB85UPE 20 V dual P-channel Trench MOSFET Production
PMDPB95XNE2 30 V, dual N-channel Trench MOSFET Production
PMFPB8032XP 20 V, 3.7 A / 320 mV VF P-channel MOSFET-Schottky combination Production
PMPB100ENE 30 V, N-channel MOSFET Production
PMPB10EN 30 V, N-channel MOSFET Production
PMPB10XNE 20 V, single N-channel Trench MOSFET Production
PMPB10XNEA 20 V, N-channel Trench MOSFET Production
PMPB11EN 30 V, N-channel Trench MOSFET Production
PMPB12UNE 20 V, N-channel Trench MOSFET Production
PMPB12UNEA 20 V, N-channel Trench MOSFET Production
PMPB13XNE 30 V, single N-channel Trench MOSFET Production
PMPB13XNEA 30 V, N-channel Trench MOSFET Production
PMPB14XP 12 V, P-channel Trench MOSFET Production
PMPB15XN 20 V, single N-channel Trench MOSFET Production
PMPB15XP 12 V, single P-channel Trench MOSFET Production
PMPB15XPA 12 V, P-channel Trench MOSFET Production
PMPB19XP 20 V, single P-channel Trench MOSFET Production
PMPB20EN 30 V, N-channel Trench MOSFET Production
PMPB20XNEA 20 V, N-channel Trench MOSFET Production
PMPB20XPE 20 V, single P-channel Trench MOSFET Production
PMPB20XPEA 20 V, P-channel Trench MOSFET Production
PMPB215ENEA 80 V, single N-channel Trench MOSFET Production
PMPB23XNE 20 V, single N-channel Trench MOSFET Production
PMPB23XNEA 20 V, N-channel Trench MOSFET Production
PMPB24EP 30 V, P-channel Trench MOSFET Production
PMPB25ENE 30 V, N-channel Trench MOSFET Production
PMPB27EP 30 V, single P-channel Trench MOSFET Production
PMPB27EPA 30 V, P-channel Trench MOSFET Production
PMPB29XNE 30 V, single N-channel Trench MOSFET Production
PMPB29XNEA 30 V, N-channel Trench MOSFET Production
PMPB29XPE 20 V, single P-channel Trench MOSFET Production
PMPB29XPEA 20 V, P-channel Trench MOSFET Production
PMPB30XPE 20 V, P-channel Trench MOSFET Production
PMPB33XN 30 V single N-channel Trench MOSFET Production
PMPB33XP 20 V, single P-channel Trench MOSFET Production
PMPB43XPE 20 V, single P-channel Trench MOSFET Production
PMPB43XPEA 20 V, P-channel Trench MOSFET Production
PMPB47XP 30 V, single P-channel Trench MOSFET Production
PMPB48EP 30 V, single P-channel Trench MOSFET Production
PMPB48EPA 30 V, P-channel Trench MOSFET Production
PMPB50ENE 30 V, N-channel Trench MOSFET Production
PMPB55ENEA 60 V, N-channel Trench MOSFET Production
PMPB85ENEA 60 V, single N-channel Trench MOSFET Production
PMPB95ENEA 80 V, single N-channel Trench MOSFET Production

Documentation

File name Title Type Date
DFN2020MD-6_SOT1220_mk plastic, thermal enhanced ultra thin small outline package; no leads; 6 terminals; 0.65 mm pitch; 2 mm x 2 mm x 0.65 mm body Marcom graphics 2017-01-28

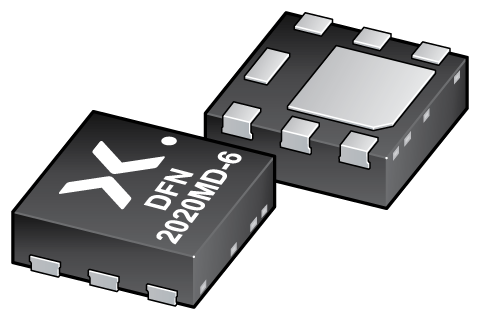

SOT1220 3D model for products with SOT1220 package Design support 2018-08-23

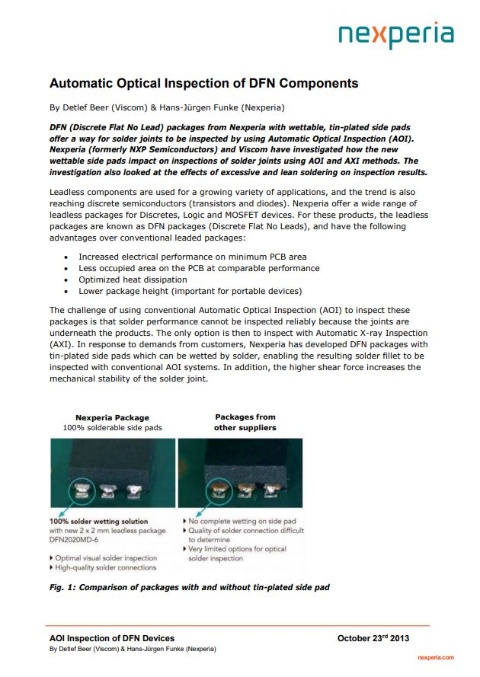

nexperia_report_aoi_inspection_dfn_201808 Automatic Optical Inspection of DFN Components Report 2018-09-03

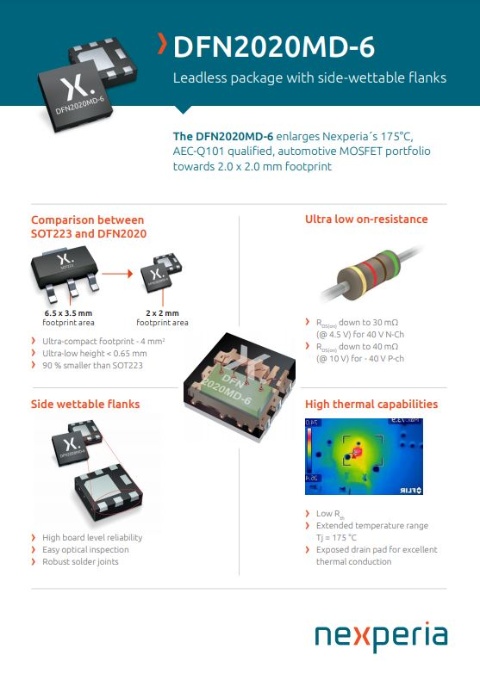

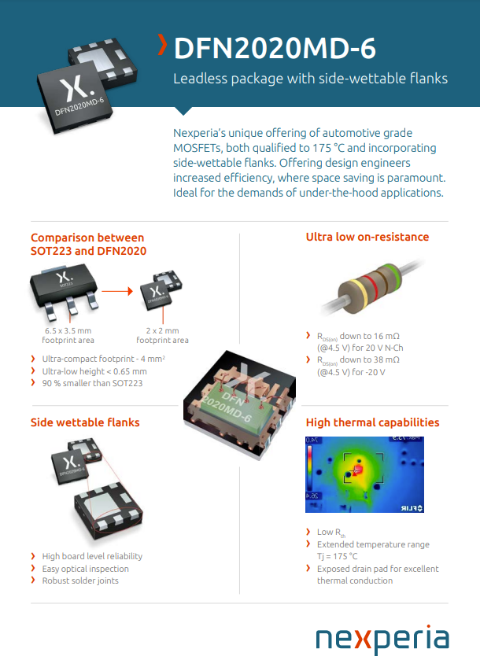

Nexperia_document_Leaflet_DFN2020MD_6_06092018 DFN2020MD-6 Leadless package with side wettable flanks Leaflet 2018-09-11
nexperia_document_leaflet_DFN202MD-6_26092018_CHN DFN2020MD-6 Leadless package with side wettable flanks - Chinese version Leaflet 2018-09-27
