Wired and wireless fast charging

Today’s electronic products in our connected world must re-charge quickly, whether it is via wired or wireless charging connections. For the fast, direct battery charging standards today’s users are demanding, we need to be able to go beyond the 1 C limit. The USB power delivery (PD) architecture is excellent for end-to-end power support and provides quick charging possibilities through a device’s USB port or via a USB Type-C wireless charging unit. USB PD extends beyond USB Battery Charging to allow up to 100 W charging, power support and role swap for system power optimization. The connector offers from 5.0 V @ 2.0 A for handhelds and wearables up to 20 V @ 5.0 A for ultrabooks

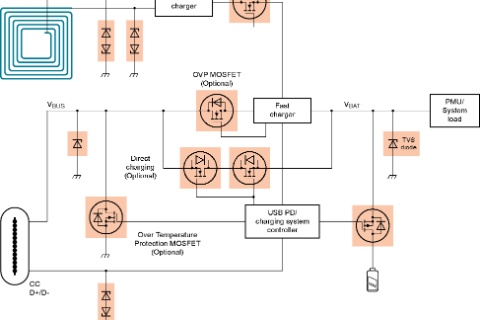

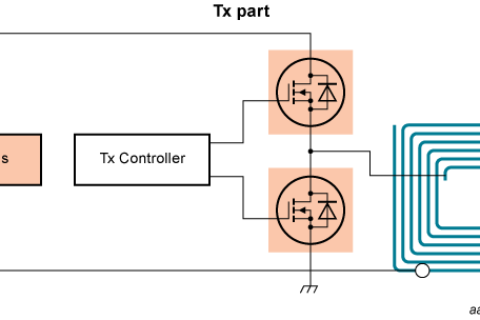

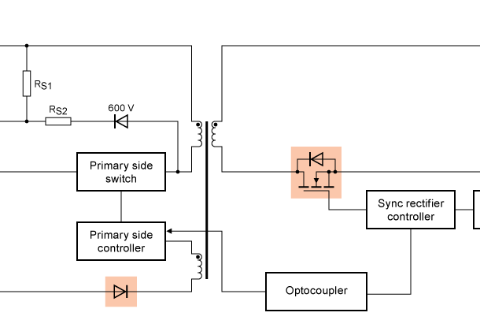

Block diagram

Design considerations

  • Both wired and wireless charging via USB Type-C PD, up to 20 V / 5 A
  • Power adapter / charger dynamically controls voltage and current for optimum charging rate beyond 1 C limit
  • Complex monitoring and fault protection allows for optimum and safe battery charging conditions
  • Option to replace DC/DC regulator in handset with back-to-back MOSFETs, reduces DC/DC losses in handset
  • Delivers more power directly to the battery with less handset heating
  • Lower battery temperature provides improved safety, reliability & longevity of battery
