NEVB-NPS3005B - 0.5-5.5 V, 6 A, 14 mΩ single channel load switch with soft start and quick output discharge (QoD) evaluation board

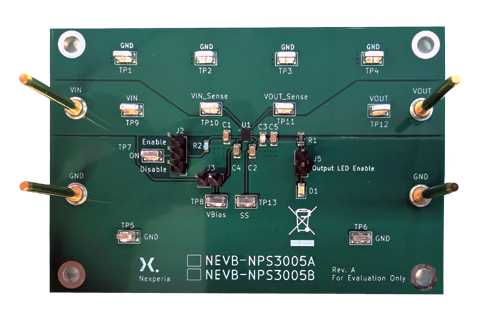

The NEVB-NPS3005B is a two-layer PCB containing the NPS3005 load switch device. It allows the user to explore the device's behavior under various application conditions.

Key features & benefits

•    Input voltage range: 0.5 V to 5.5 V
•    Maximum load current (IMAX): 6 A
•    14 mΩ (typical) on-resistance
•    Adjustable soft start
•    Quick output discharge
•    Enable pin supports down to 1.2 V
•    Over-temperature protection (thermal shutdown)
