Darlington transistors

Fulfil your amplification and switching needs

You can choose from numerous PNP and NPN devices, all delivering very high DC current gain.

Key features and benefits

  • Very high DC current gain (hFE = 20000)
  • High DC collector current
  • VCEO from 30 V to 80 V

Key applications

  • Low and high side switches
  • Audio amplifiers
  • Sensor amplifiers

Parametric search

General purpose bipolar transistors
Please wait loading data...
Parametric search is unavailable.

Products

Type number Description Status Quick access
BCV27; BCV47 NPN Darlington transistors ACT
BCV27 NPN Darlington transistor Production
BCV47 NPN Darlington transistor Production
BCV29; BCV49 NPN Darlington transistors ACT
BCV29 NPN Darlington transistors Production
BCV49 NPN Darlington transistors Production
BSP50 NPN Darlington transistor Production
BSP51 NPN Darlington transistor Production
BSP52 NPN Darlington transistor Production
BST50 NPN Darlington transistors Production
BST51 NPN Darlington transistors Production
BST52 NPN Darlington transistors Production
PMBTA13 NPN Darlington transistors Production
PMBTA14 NPN Darlington transistors Production
PXTA14 NPN Darlington transistor Production

Marcom graphics (1)

File name Title Type Date

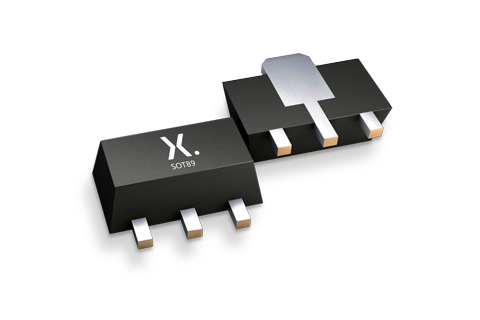

SOT89_mk plastic, surface-mounted package; 3 leads; 1.5 mm pitch; 4.5 mm x 2.5 mm x 1.5 mm body Marcom graphics 2017-01-28

Selection guide (1)

File name Title Type Date
nexperia_selection_guide_2019_201901 Selection guide 2019. Discretes, Logic and MOSFETs Selection guide 2018-12-12
