Key features and benefits
Features and benefits
- Total power dissipation: ≤ 250 mW
- Lowest tolerance of ± 1%
- Working voltage range: nominal 2.4 V to 75 V (E24 range)
- Non-repetitive peak reverse power dissipation: ≤ 40 W
- Qualified according to AEC-Q101 and recommended for use in automotive applications
- Available in a SOD123F package: BZT52H-A* ( BZT52H-A*-Q)
- Available in a SOD323 package: BZX384-A* ( BZX384-A*-Q)
- Qualified according to AEC-Q101 and recommended for use in automotive applications
Key applications
Applications
- General regulation functions

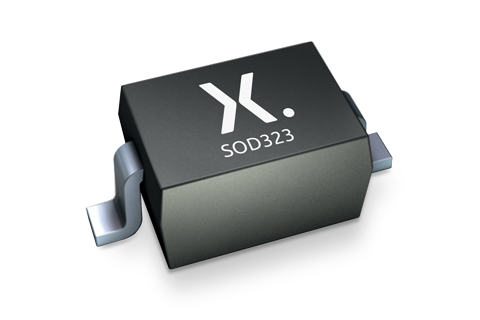

SOD323 |
plastic, surface-mounted package; 2 leads; 1.3 mm pitch; 1.7 mm x 1.25 mm x 0.95 mm body |
|

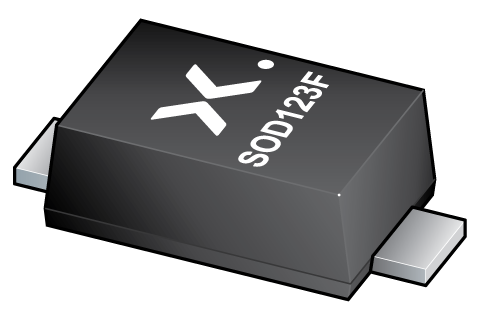

SOD123F |
plastic, surface-mounted package; 2 leads; 2.6 mm x 1.6 mm x 1.1 mm body |
|
