Silicon Carbide (SiC) Schottky diodes

Silicon Carbide Schottky diodes for fast switching power conversion

Nexperia’s leading edge Silicon Carbide (SiC) Schottky diodes for ultra-high performance, low loss, and high efficiency power conversion applications. SiC Schottky diodes benefit from temperature independent capacitive turn-off and zero recovery switching behavior, combined with an outstanding figure-of-merit (Qc x VF). The Merged PiN Schottky diode improves the robustness expressed in a high IFSM.

Key features

  • Zero forward and reverse recovery
  • Temperature independent switching performance
  • Fast and smooth switching performance
  • High IFSM capability
  • Low leakage current
  • Easy to parallel / positive temperature coefficient
  • Outstanding figure-of-merit (Qc x VF
  • Thermal stability up to 175 °C junction temperature
  • AEC-Q101 qualification

Key applications

Industrial and consumer applications

  • Switch Mode Power Supply (SMPS)
  • AC-DC and DC-DC converters
  • Battery charging infrastructure
  • Server and telecom power supply
  • Uninterruptible Power Supply (UPS)
  • Photovoltaic inverters

Automotive applications:

  • On-Board Chargers (OBC)
  • Inverters
  • High voltage DC-DC converter

Key benefits

  • High power density
  • Reduced system cost
  • System miniaturization
  • High temperature operation
  • Reduced EMI
  • Increased ruggedness and reliability

Parametric search

Silicon Carbide (SiC) Schottky diodes
Please wait loading data...
Parametric search is unavailable.

Products

Type number Description Status Quick access

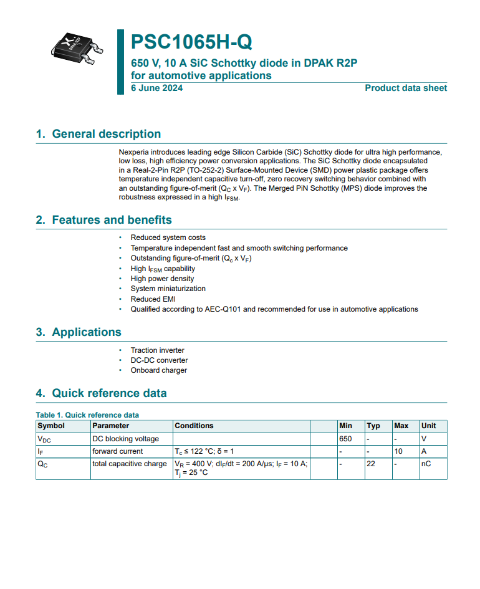

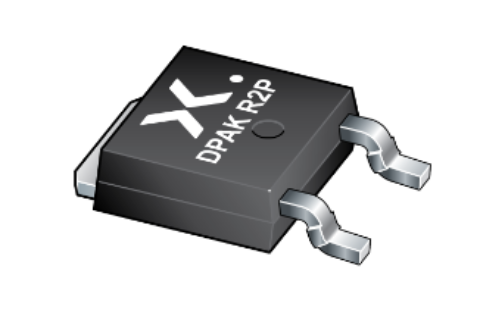

PSC1065H-Q 650 V, 10 A SiC Schottky diode in DPAK R2P for automotive applications Production

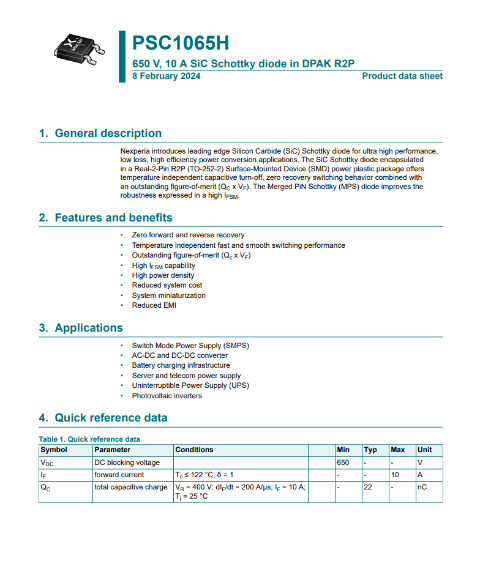

PSC1065H 650 V, 10 A SiC Schottky diode in DPAK R2P Production

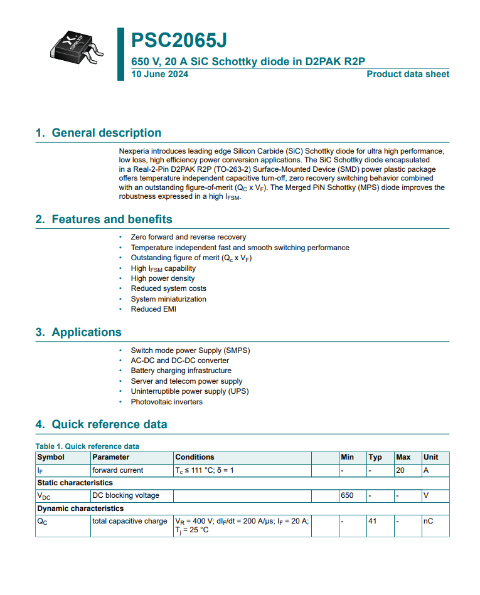

PSC2065J 650 V, 20 A SiC Schottky diode in D2PAK R2P Production

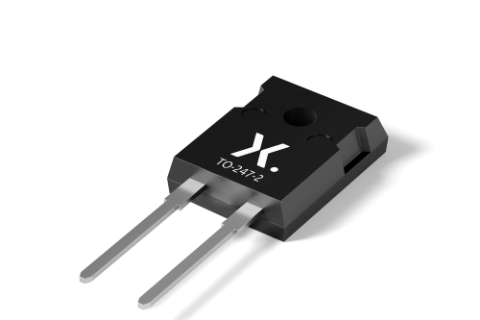

PSC1665L 650 V, 16 A SiC Schottky diode in TO247 R2P Production

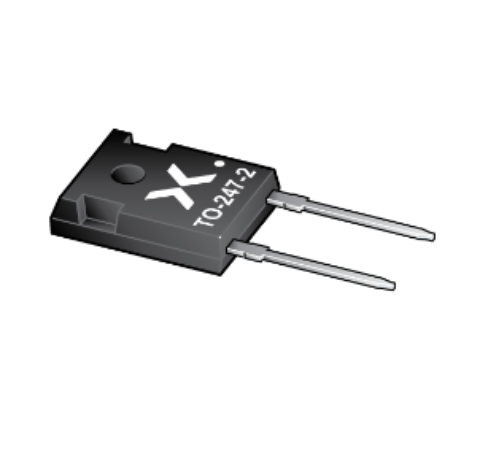

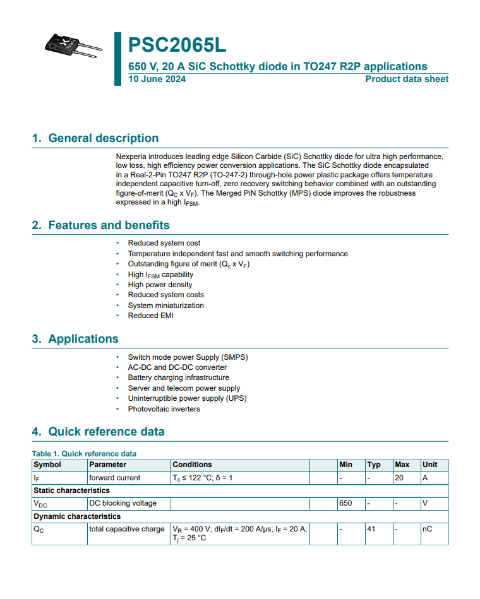

PSC2065L 650 V, 20 A SiC Schottky diode in TO247 R2P Production

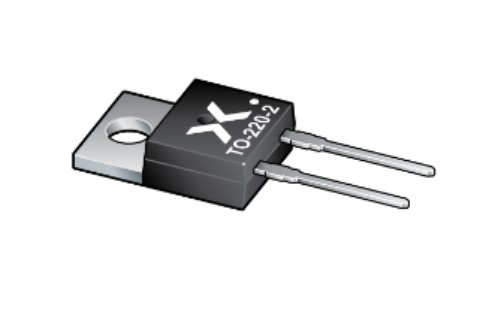

PSC0665K 650 V, 6 A SiC Schottky diode in TO-220-2 R2P Production
PSC1665J 650 V, 16 A SiC Schottky diode in D2PAK R2P Production
PSC1065K 650 V, 10 A SiC Schottky diode in TO-220-2 R2P Production

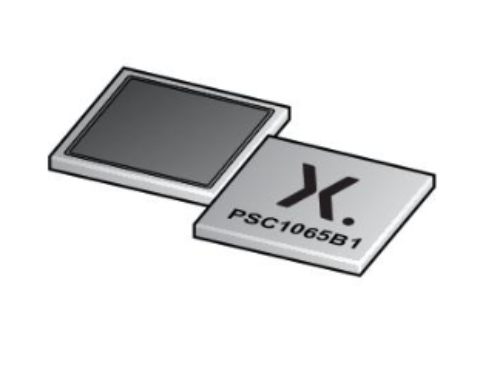

PSC1065B1-Q 650 V, 10 A SiC Schottky diode in bare die for automotive applications Production
PSC0665H 650 V, 6 A SiC Schottky diode in DPAK R2P Production

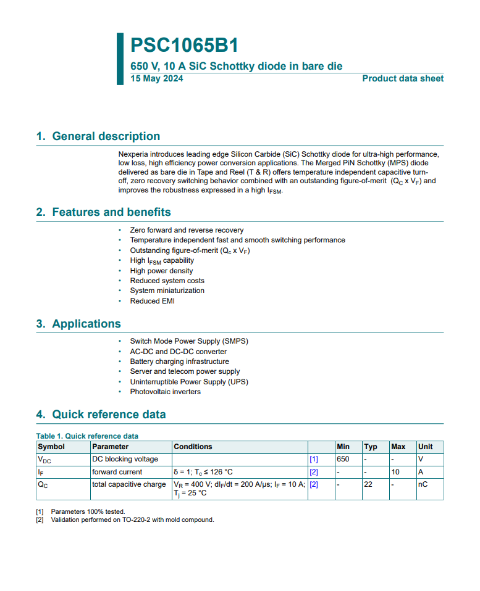

PSC1065B1 650 V, 10 A SiC Schottky diode in bare die Production
PSC0665B1 650 V, 6 A SiC Schottky diode in bare die Production
Visit our documentation center for all documentation

Brochure (1)

File name Title Type Date
nexperia_DIODE_Handbook.pdf Nexperia DIODE Handbook Chinese Brochure 2023-09-20

Leaflet (3)

File name Title Type Date

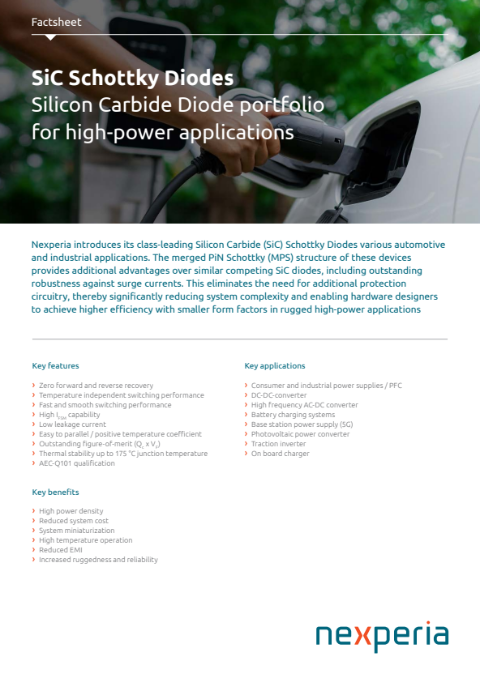

2024_0001_NEX_158_Factsheet_SiC_Diode_update_August_v1.pdf New Silicon Carbide Diode portfolio for high-power Leaflet 2024-08-26
Nexperia_document_factsheet_SiC_CN.pdf SiC肖特基二极管 全新高功率碳化硅二极管产品组合 Leaflet 2022-04-25
Nexperia_document_SiC-factsheet.pdf SiC Schottky Diodes - New Silicon Carbide Diode portfolio for high-power Leaflet 2021-11-05

Marcom graphics (1)

File name Title Type Date
RS2175_D2PAK_SOT404_B_mk_2-pin.png D2PAK SOT404_B MARCOM graphic Marcom graphics 2021-10-29

Selection guide (1)

File name Title Type Date
Nexperia_Selection_guide_2023.pdf Nexperia Selection Guide 2023 Selection guide 2023-05-10

Technical note (1)

File name Title Type Date
TN90007.pdf Evaluation of junction temperature and thermal stacks using the virtual junction Technical note 2024-09-02

White paper (2)

File name Title Type Date
2023-0001_NEX_080_Whitepaper_SiC-diodes_Chinese_FINAL_version.pdf 2023-0001_NEX_080_Whitepaper_SiC-diodes_Chinese White paper 2023-06-08

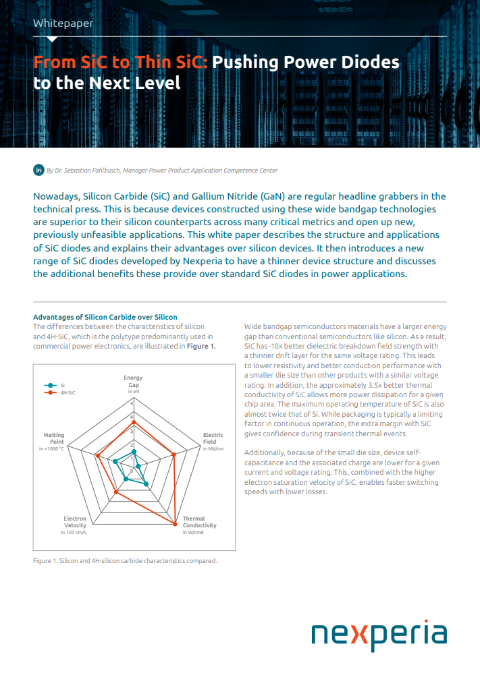

2023-0001_NEX_029_Whitepaper_SiC-diodes_V04.pdf Whitepaper SiC diodes White paper 2023-04-21
