ASFETs for Battery Isolation

Strong SOA, robustness and maximum current

The majority of today’s handheld and battery powered tools and equipment are reliant on multi-cell lithium-ion battery packs. Li-ion batteries have the advantage of high energy density. However, in a fault condition this can become problematic with the potential for a massive uncontrolled energy discharge, resulting in over-heating of loads and potential circuit fires. To handle any significant discharge in a controlled manner until the battery is safely isolated and the system switched-off, requires an extremely robust and thermally efficient MOSFET. An ideal application for Nexperia’s toughest LFPAK housed devices.

  • Parametric search
  • Details
  • Parametric search
  • Products
  • Documentation
  • Datasheets
  • Support
  • Cross reference

ASFETs for Battery Isolation are designed specifically for multi-cell battery powered equipment:

  • Under a fault situation, the Battery Isolation MOSFET normally goes into linear mode due to voltages being developed across circuit inductance at high current when the fault causes a deep discharge
  • Strong SOA MOSFETs continue to operate safely and controllably until switch off and the battery is fully isolated from the load circuit
  • A low RDS(on) is required for low conduction losses in normal operation, but parameters need to be optimized for safe Battery Isolation
  • Robust Battery Isolation MOSFETs can be used as the primary protection for equipment approval
  • A low Vt may be required as battery protection IC may only have 2–3 V gate drive

Featured products

PSMNR70-40SSH

PSMNR70-40SSH

N-channel 40 V, 0.7 mΩ, 425 Amps continuous, standard level MOSFET in ...

PSMN1R0-40ULD

PSMN1R0-40ULD

N-channel 40 V, 1.1 mΩ, 280 A logic level MOSFET in SOT1023A enhanced ...

PSMNR51-25YLH

PSMNR51-25YLH

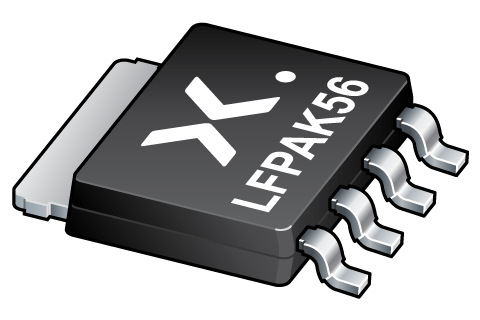

N-channel 25 V, 0.57 mΩ, 380 A logic level MOSFET in LFPAK56E

Featured documents

Maximum continuous current in Nexperia LFPAK power MOSFETs

Maximum continuous current in Nexperia LFPAK power MOSFETs

AN90016

Designing in MOSFETs for safe and reliable gate-drive operation

Designing in MOSFETs for safe and reliable gate-drive operation

AN90001

Latest news and blogs

  • Blog article
Jul 15, 2020

instagrid: a revolution in portable power

  • Press release
Jan 29, 2020

Nexperia extends market-leading low RDS(on) MOSFET ...

  • Press release
Mar 21, 2019

Nexperia announces lowest RDS(on) MOSFETs in ...

  • Blog article
Jun 1, 2018

Innovating to meet changing standards - UL 2595

  • Blog article
Feb 26, 2018

Qrr: overlooked and underappreciated in efficiency ...

Latest videos

Design considerations with sub-milliohm MOSFETs – Quick Learning

Design considerations with sub-milliohm MOSFETs – Quick Learning
instagrid – portable power for professionals
Quick Learning: The importance of SOA
Using Nexperia Power MOSFETs to handle high currents up to 380 A
Quick Learning: What is LFPAK56-UL2595?

Parametric search

ASFETs for Battery Isolation
Please wait loading data...
Parametric search is unavailable.

How to use parametric search?

  • You can choose the number of results per page: 10, 25, 50, 100 or all results.
  • You can use the filters in the second row to narrow down the selection. Click on one or more values in the lists you want to select. Or use the sliders by dragging the handlers or fill in the fields.
  • The common characteristics are parameters with the same value for all type numbers.
  • You can find more information about a type number by hovering over the type number and click on one of the links in the pop-up.
  • You can compare two or more type numbers by selection the checkboxes for the type numbers and click on Compare. All other rows will be hidden.
  • To hide the row with filtering options, click on the grey bar with arrows below the options.
  • To add or remove columns with parameters click on the Add/Remove parameters button on the top right. You can check the columns you want to see.
  • You can change the order of the columns by dragging and dropping the columns to the desired position.
  • You can download the results of your (filtered) selection to Excel by clicking the Download Excel button.

Products

Type number Description Status Quick access
PSMN0R9-30ULD N-channel 30 V, 0.87 mOhm, 300 A level Application Specific MOSFET in SOT1023A enhanced package for UL2595 Production
  • Download datasheet
PSMN1R0-40SSH N-channel 40 V, 1 mΩ, 325 Amps continuous, standard level MOSFET in LFPAK88 using NextPowerS3 Technology Production
  • Download datasheet
PSMN1R0-40ULD N-channel 40 V, 1.1 mOhm, 280 A logic level Application Specific MOSFET in SOT1023A enhanced package for UL2595 Production
  • Download datasheet
PSMN1R0-40YLD N-channel 40 V, 1.1 mΩ, 280 A logic level MOSFET in LFPAK56 using NextPower-S3 Schottky-Plus technology Production
  • Download datasheet
  • Samples
PSMN1R2-55SLH N-channel 55 V, 1.03 mOhm, 330 A logic level Application Specific MOSFET in LFPAK88 Production
  • Download datasheet
PSMN1R5-50YLH N-channel 50 V, 1.7 mOhm, 200 A continuous, logic level Application Specific MOSFET in LFPAK56E Production
  • Download datasheet
PSMN2R0-55YLH N-channel 50 V, 2.1 mOhm, 200 A continuous, logic level Application Specific MOSFET in LFPAK56E Production
  • Download datasheet
PSMN3R9-100YSF NextPower 100 V, 4.3 mOhm, 120 A, N-channel MOSFET in LFPAK56E package Production
  • Download datasheet
PSMNR51-25YLH N-channel 25 V, 0.57 mΩ, 380 A logic level MOSFET in LFPAK56E using NextPowerS3 technology Production
  • Download datasheet
PSMNR58-30YLH N-channel 30 V, 0.67 mΩ, 380 A logic level MOSFET in LFPAK56E using NextPowerS3 technology Production
  • Download datasheet
PSMNR60-25YLH N-channel 25 V, 0.7 mΩ, 300 A logic level MOSFET in LFPAK56 using NextPowerS3 technology Production
  • Download datasheet
PSMNR70-30YLH N-channel 30 V, 0.82 mΩ, 300 A logic level MOSFET in LFPAK56 using NextPowerS3 technology Production
  • Download datasheet
PSMNR90-40YLH N-channel 40 V, 0.94 mΩ, 300 A logic level MOSFET in LFPAK56E using NextPower-S3 Schottky-Plus technology Production
  • Download datasheet
PSMNR90-50SLH N-channel 50 V, 0.90 mOhm, 410 A logic level Application Specific MOSFET in LFPAK88 Production
  • Download datasheet
Visit our documentation center for all documentation

Application note (3)

File name Title Type Date
AN50006 Power MOSFETs in linear mode Application note 2022-04-12
AN90016 Maximum continuous currents in NEXPERIA LFPAK power MOSFETs Application note 2020-09-03
AN90001 Designing in MOSFETs for safe and reliable gate-drive operation Application note 2017-05-05

Leaflet (2)

File name Title Type Date
nexperia_document_leaflet_LFPAK88_2022_CHN LFPAK88 将功率密度提升到新高度 Leaflet 2022-03-10
nexperia_document_leaflet_LFPAK88_2022 LFPAK88 - Driving power-density to the next level Leaflet 2022-03-09

Selection guide (1)

File name Title Type Date
Nexperia_Selection_guide_2022 Nexperia Selection Guide 2022 Selection guide 2022-01-05
