Automotive ASFETs for half-bridge configurations

60% lower parasitic inductance and improved thermal performance

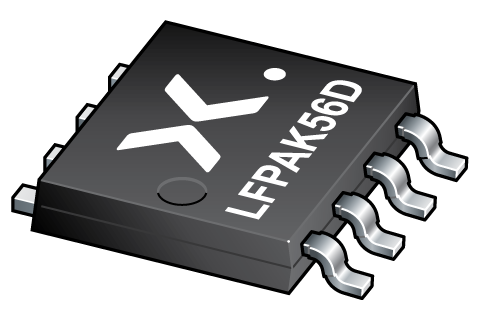

A series of half-bridge (high side & low side) MOSFETs constructed in the space-saving LFPAK56D package format. The half-bridge configurationis a standard building block for many automotive applications including motor drives and DC/DC converters. The LFPAK56D half-bridge occupies 30% lower PCB area compared to dual MOSFETs due to the removal of PCB tracks whilst also permitting simple automated optical inspection (AOI) during production. Utilising existing high volume LFPAK56D assembly processes, with proven automotive reliability. The package format uses flexible leads to improve overall reliability, as well as an internal copper clip connection between the MOSFETs simplifying PCB design, offering a plug and play style solution with exceptional current handling capability to your application.

  • Parametric search
  • Details
  • Parametric search
  • Products
  • Documentation
  • Datasheets
  • Support
  • Cross reference

Features and Benefits

  • 60% lower parasitic inductance due to internal clip connection
  • 30% space saving on PCB compared to LFPAK56D dual
  • High performance ID max >60 A
  • Low thermal resistance
  • Flexible leads for BLR
  • Footprint compatible with LFPAK56D dual
  • External leads for easy AOI
  • Beyond AEC-Q101 for automotive products

Applications

  • 3-phase automotive power train applications
    • Fuel, oil and water pumps
  • Motor control
  • DC/DC

Featured products

BUK7V4R2-40H

BUK7V4R2-40H

Dual N-Channel 40 V, 4.2 mΩ SL MOSFET

BUK9V13-40H

BUK9V13-40H

Dual N-Channel 40 V, 13 mΩ LL MOSFET

Featured documents

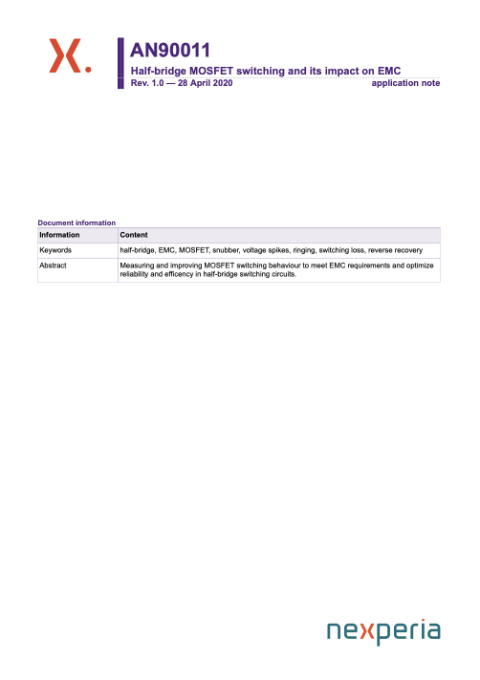

Half-bridge MOSFET switching and its impact on EMC

Half-bridge MOSFET switching and its impact on EMC

AN90011

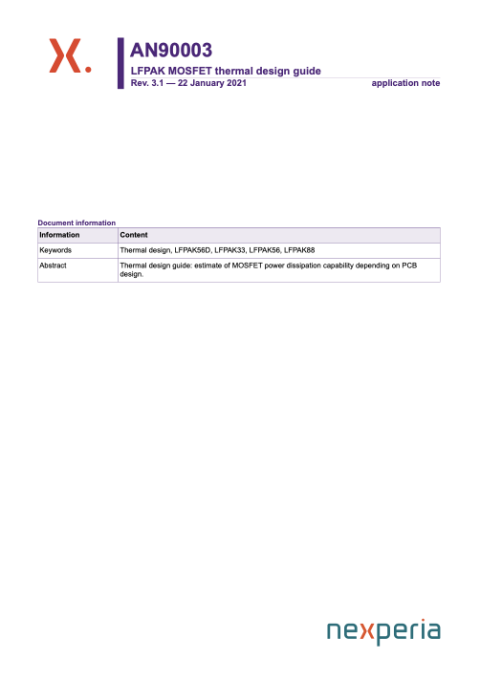

LFPAK MOSFET thermal design guide

LFPAK MOSFET thermal design guide

AN90003

Latest news and blogs

  • Press release
Feb 23, 2021

Nexperia extends LFPAK56D MOSFET line-up with ...

  • Blog article
Feb 17, 2021

Motor control and conversion efficiency vital for ...

Latest videos

LFPAK56D half-bridge MOSFETs

LFPAK56D half-bridge MOSFETs
PCB layout options for MOSFETs in low/medium power automotive ...
What is LFPAK56D half-bridge? (dual MOSFET package in ...

Parametric search

Automotive ASFETs for half-bridge configurations
Please wait loading data...
Parametric search is unavailable.

How to use parametric search?

  • You can choose the number of results per page: 10, 25, 50, 100 or all results.
  • You can use the filters in the second row to narrow down the selection. Click on one or more values in the lists you want to select. Or use the sliders by dragging the handlers or fill in the fields.
  • The common characteristics are parameters with the same value for all type numbers.
  • You can find more information about a type number by hovering over the type number and click on one of the links in the pop-up.
  • You can compare two or more type numbers by selection the checkboxes for the type numbers and click on Compare. All other rows will be hidden.
  • To hide the row with filtering options, click on the grey bar with arrows below the options.
  • To add or remove columns with parameters click on the Add/Remove parameters button on the top right. You can check the columns you want to see.
  • You can change the order of the columns by dragging and dropping the columns to the desired position.
  • You can download the results of your (filtered) selection to Excel by clicking the Download Excel button.

Products

Type number Description Status Quick access
BUK7V4R2-40H Dual N-channel 40 V, 4.2 mOhm standard level MOSFET in LFPAK56D (half-bridge configuration) Production
  • Download datasheet
BUK9V13-40H Dual N-channel 40 V, 13 mOhm logic level MOSFET in LFPAK56D (half-bridge configuration) Production
  • Download datasheet
Visit our documentation center for all documentation

Application note (2)

File name Title Type Date
AN90003 LFPAK MOSFET thermal design guide Application note 2021-01-22
AN90011 Half-bridge MOSFET switching and its impact on EMC Application note 2020-04-28

Marcom graphics (1)

File name Title Type Date

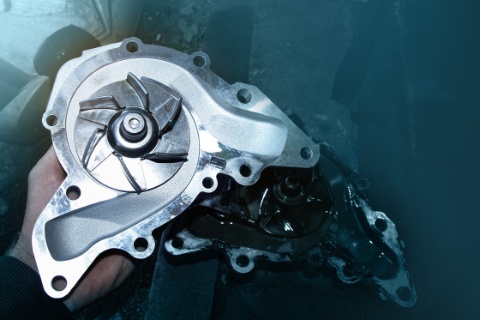

RS3408 Automotive water pump MARCOM image Marcom graphics 2021-11-25

Selection guide (1)

File name Title Type Date
Nexperia_Selection_guide_2022 Nexperia Selection Guide 2022 Selection guide 2022-01-05

SPICE model (2)

File name Title Type Date
BUK9V13-40H BUK9V13-40H SPICE model SPICE model 2021-02-09
BUK7V4R2-40H BUK7V4R2-40H SPICE model SPICE model 2021-02-09

Thermal model (4)

File name Title Type Date
BUK9V13-40H_Foster BUK9V13-40H Foster thermal model Thermal model 2021-02-09
BUK9V13-40H_Cauer BUK9V13-40H Cauer thermal model Thermal model 2021-02-09
BUK7V4R2-40H_Foster BUK7V4R2-40H Foster thermal model Thermal model 2021-02-09
BUK7V4R2-40H_Cauer BUK7V4R2-40H Cauer thermal model Thermal model 2021-02-09
