DFN0603 MOSFETs

Market's smallest DFN packaged MOSFET with best-in-class RDS(on) performance

Nexperia's smallest MOSFET package at 0.63 x 0.33 x 0.25 mm. Featuring best-in-class low RDS(on) ideal for the most stringent space constrained applications, such as smart watches, hearing aids, fitness trackers and many more mobile applications.

Features and benefits

  • Smallest MOSFET in DFN package 0.63x0.33mm
  • Ultra low profile 0.25 mm
  • Best-in-class low RDS(on)
  • Excellent thermal conduction

Applications

  • Battery switch
  • High-speed line driver
  • High-side load switch
  • Switching circuits

Parametric search

DFN0603 MOSFETs
Please wait loading data...
Parametric search is unavailable.

Products

MOSFETs

Type number Description Status Quick access
PMX100UN 20 V, N-channel Trench MOSFET Production
PMX100UNE 20 V, N-channel Trench MOSFET Production
PMX300UNE 30 V, N-channel Trench MOSFET Production
PMX400UP 20 V, P-channel Trench MOSFET Production
PMX700EN 60 V, N-channel Trench MOSFET Production

Documentation

File name Title Type Date
AN11304 MOSFET load switch PCB with thermal measurement Application note 2013-01-28
AN90009 Leakage of small-signal MOSFETs Application note 2019-11-08

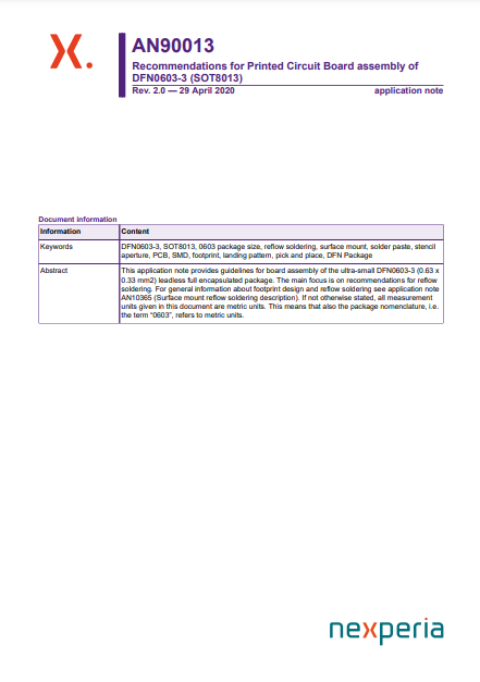

AN90013 Recommendations for Printed Circuit Board assembly of DFN0603-3 (SOT8013) Application note 2020-04-29

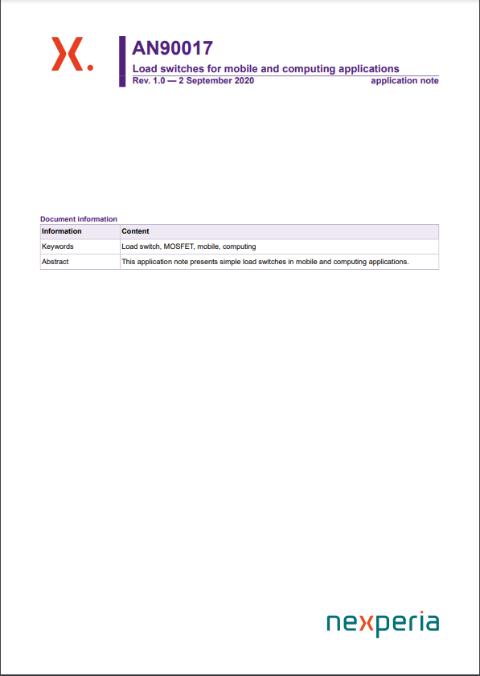

AN90017 Load switches for mobile and computing applications Application note 2020-09-02
nexperia_document_leaflet_SsMOS_for_mobile_2022 High volume small-signal MOSFETs for mobile and portables, in WLCSP and leadless DFN packages Leaflet 2022-07-04
nexperia_document_leaflet_SsMOS_for_mobile_2022-CHN 适合移动和便携式设备的 大批量小信号MOSFET, 采用WLCSP和无引脚DFN封装 Leaflet 2022-07-04
RS2919_DFN0603_3_Combi DFN0603-3 MARCOM image Marcom graphics 2021-11-16
SOT8013 3D model for products with SOT8013 package Design support 2022-06-02
