Transistors double

Meeting the design challenges of the future

A bountiful selection of double transistors ensures you can pick the best device for your design. For today’s increasingly efficient systems – where both power and space are at a premium – we offer SMD packages includes our ultra small leadless housing SOT883.

Key features and benefits

  • Ultra small 1006 sized SOT883 (SC-101) leadless package
  • Broad choice of SMD and leaded package options
  • Wide range of double and single functions
  • More than 300 different products

Key applications

  • General purpose switching and amplification

Parametric search

Transistors double
Please wait loading data...
Parametric search is unavailable.

Products

Type number Description Status Quick access
BC807DS-Q PNP/PNP general purpose double transistors Production
BC807RA 45 V, 500 mA PNP/PNP general-purpose double transistors Production
BC817DPN-Q NPN/PNP general purpose transistor Production
BC817DS-Q NPN/NPN general purpose double transistor Production
BC817RA 45 V, 500 mA NPN/NPN general-purpose double transistors Production
BC817RAPN 45 V, 500 mA NPN/PNP general-purpose double transistors Production
BC846BPN-Q 65 V, 100 mA NPN/PNP general-purpose transistor Production
BC846BPNH-Q 65 V, 100 mA NPN/PNP general-purpose double transistor Production
BC846BS-Q 65 V, 100 mA NPN/NPN general-purpose transistor Production
BC846BSH-Q 65 V, 100 mA NPN/NPN general-purpose double transistor Production
BC846DS 65 V, 100 mA NPN/NPN general-purpose transistor Production
BC846S-Q NPN general purpose double transistor Production
BC846SH-Q 65 V, 100 mA NPN/NPN general-purpose double transistor Production
BC847BPN-Q 45 V, 100 mA NPN/PNP general-purpose transistor Production
BC847BPNH-Q 45 V, 100 mA NPN/PNP general-purpose double transistor Production
BC847BS-Q 45 V, 100 mA NPN/NPN general-purpose transistor Production
BC847BSH-Q 45 V, 100 mA NPN/NPN general-purpose double transistor Production
BC847DS 45 V, 100 mA NPN/NPN general-purpose transistor Production
BC847QAPN 45 V, 100 mA NPN/PNP general-purpose transistor Production
BC847QAS 45 V, 200 mA NPN/NPN general-purpose transistor Production
BC847RA 45 V, 100 mA NPN/NPN general-purpose double transistors Production
BC847RAPN 45 V, 100 mA NPN/PNP general-purpose double transistors Production
BC856BS-Q 65 V, 100 mA PNP/PNP general-purpose transistor Production
BC856BSH-Q 65 V, 100 mA PNP/PNP general-purpose double transistor Production
BC856S-Q 65 V, 100 mA PNP/PNP general-purpose transistor Production
BC856SH-Q 65 V, 100 mA PNP/PNP general-purpose double transistor Production
BC857BS-Q PNP general purpose double transistor Production
BC857BSH-Q 45 V, 100 mA PNP/PNP general-purpose double transistor Production
BC857QAS 45 V, 100 mA PNP/PNP general-purpose transistor Production
BC857RA 45 V, 100 mA PNP/PNP general-purpose double transistors Production
NMB2227A 40 V, 600 mA NPN/PNP general-purpose transistors Production
PMBT3904YS-Q 40 V, 200 mA NPN/NPN general-purpose double transistor Production
PMBT3906YS-Q 40 V, 200 mA PNP/PNP general-purpose double transistor Production
PMBT3946YPN-Q 40 V, 200 mA NPN/PNP general-purpose double transistor Production
PMBTA42DS-Q 300 V, 100 mA NPN/NPN high-voltage double transistor Production
PUMX1-Q 40 V, 100 mA NPN/NPN general-purpose transistor Production
PUMX2-Q NPN/NPN general-purpose double transistor Production
PUMZ1-Q NPN/PNP general purpose transistor Production
Visit our documentation center for all documentation

Marcom graphics (1)
File name Title Type Date

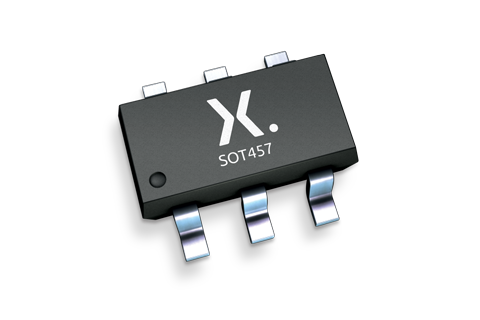

SOT457_mk.png plastic, surface-mounted package (SC-74) Marcom graphics 2018-11-26
