Automotive low leakage current switching diodes

Robust and efficient solutions

Ideal for surface mounted circuits, these epitaxial medium-speed switching diodes are housed in a small SOT23 plastic SMD package. Together with featuring low leakage current they are AEC-Q101 qualified.

Parametric search

Automotive low leakage current switching diodes
Please wait loading data...
Parametric search is unavailable.

Products

Type number Description Status Quick access
BAS416-Q Low-leakage switching diode Production
BAV199S-Q Low-leakage quadruple diode Production
BAS116DY-Q Low-leakage dual switching diode Production
BAS116VY-Q Low-leakage triple switching diode Production
BAS116T Single low leakage current switching diode EndOfLife
BAS116GW Low leakage switching diode Production
BAW156 Low-leakage double diode Production
BAS116L Low-leakage diode Production
BAS116 Low-leakage diode Production
BAS116QA Low-leakage diode Production
BAS116H Low leakage switching diode Production
BAS716 Low-leakage diode Production
BAV170M Dual common cathode low-leakage diode Production
BAV199-Q Low-leakage double diode Production
BAV170-Q Low-leakage double diode Production
BAV199W-Q Low-leakage double diode Production
BAV199QC-Q Low-leakage double diode Production
BAV170QA-Q Dual common cathode low-leakage diode Production
BAW156-Q Low-leakage double diode Production
Visit our documentation center for all documentation

Marcom graphics (1)

File name Title Type Date

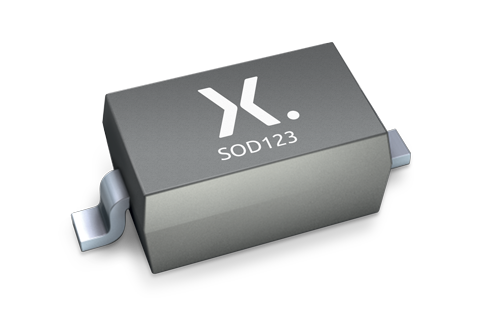

SOD123_mk.png plastic, surface-mounted package; 2 leads; 2.675 mm x 1.6 mm x 1.15 mm body Marcom graphics 2017-01-28

Selection guide (1)

File name Title Type Date
Nexperia_Selection_guide_2023.pdf Nexperia Selection Guide 2023 Selection guide 2023-05-10
