LFPAK88 MOSFETs

Driving power-density to the next level

Providing a true alternative to D²PAK, Nexperia’s LFPAK88 delivers industry leading power density in truly innovative 8mm x 8mm footprint. Delivering 2x higher continuous current rating, ultimate thermal performance and reliability, and up to 60% space saving efficiency, making LFPAK88 the MOSFET of choice for the most challenging new designs. Available in both automotive AEC-Q101 and industrial grades

  • Parametric search
  • Details
  • Parametric search
  • Products
  • Documentation
  • Support
  • Datasheet

Target applications

The versatility of the LFPAK88 makes it suitable for a wide variety of applications

Automotive

  • Power steering
  • ABS braking
  • DC/DC conversion
  • e-fuse
  • Reverse battery protection
  • Motor control

Industrial

  • Battery isolation
  • Battery powered tools
  • e-fuse motor control
  • Power supply equipment
  • Telecom infrastructure
  • Mobility and off-road traction e.g. e-bike, e-scooter, wheelchairs

Key features

  • 8 mm x 8 mm footprint
  • 53x power-density compared to wire bonded equivalents
  • Advanced package design exceeds 2 x AEC-Q101
  • Ultra low On-Resistance
  • Copper clip technology gives low electrical and thermal resistance
  • Best-in-class linear mode (SOA) performance in-rush and surge protection

Featured products

PSMNR55-40SSH

PSMNR55-40SSH

N-channel 40 V, 0.55 mΩ, 500 Amps continuous, SL MOSFET

BUK7S0R5-40H

BUK7S0R5-40H

N-channel 40 V, 0.5 mΩ, SL MOSFET

BUK7S2R0-40H

BUK7S2R0-40H

N-channel 40 V, 2 mΩ SL MOSFET

Featured documents

Maximum continuous currents in Nexperia LFPAK power MOSFETs

Maximum continuous currents in Nexperia LFPAK power MOSFETs

AN90016

Understanding power MOSFET datasheet parameters

Understanding power MOSFET datasheet parameters

AN11158

Using power MOSFETs in parallel

Using power MOSFETs in parallel

AN11599

Latest news and blogs

  • Press release
May 27, 2021

Low RDS(on) 40 V MOSFETs from Nexperia deliver ...

  • Blog article
May 20, 2021

LFPAK88 – more power packed in every cubic millimeter

  • Blog article
Sep 30, 2019

LFPAK88: A very cool customer

  • Blog article
Aug 28, 2019

LFPAK88 takes a shorter path to efficiency

  • Press release
May 7, 2019

New 8 x 8 mm addition to Nexperia’s LFPAK MOSFET ...

  • Blog article
May 6, 2019

LFPAK ups power efficiency with new 8 x 8 footprint

Latest videos

Design considerations with sub-milliohm MOSFETs – Quick Learning

Design considerations with sub-milliohm MOSFETs – Quick Learning

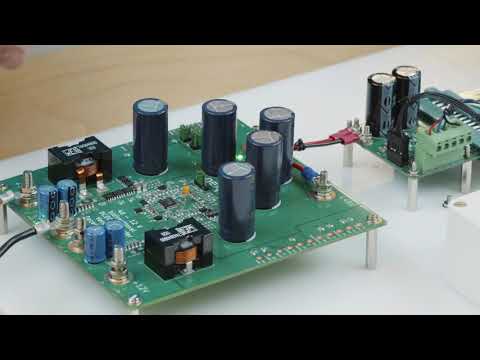

Nexperia demo: Balanced current sharing between parallel MOSFETs
Automotive 48V/12V bidirectional DC/DC converter featuring ...
LFPAK88 MOSFETs
Addressing thermal concerns: LFPAK88 Vs D2PAK - Quick Learning
LFPAK88: The automotive Power MOSFET driving power density to ...

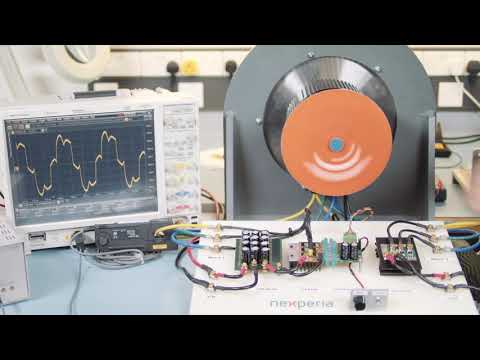

High current 3-phase BLDC motor drive application using ...
Under the hood of LFPAK88

Parametric search

LFPAK88 MOSFETs
Please wait loading data...
Parametric search is unavailable.

How to use parametric search?

  • You can choose the number of results per page: 10, 25, 50, 100 or all results.
  • You can use the filters in the second row to narrow down the selection. Click on one or more values in the lists you want to select. Or use the sliders by dragging the handlers or fill in the fields.
  • The common characteristics are parameters with the same value for all type numbers.
  • You can find more information about a type number by hovering over the type number and click on one of the links in the pop-up.
  • You can compare two or more type numbers by selection the checkboxes for the type numbers and click on Compare. All other rows will be hidden.
  • To hide the row with filtering options, click on the grey bar with arrows below the options.
  • To add or remove columns with parameters click on the Add/Remove parameters button on the top right. You can check the columns you want to see.
  • You can change the order of the columns by dragging and dropping the columns to the desired position.
  • You can download the results of your (filtered) selection to Excel by clicking the Download Excel button.

Products

Automotive qualified products (AEC-Q100/Q101)

Type number Description Status Quick access
BUK7S0R5-40H N-channel 40 V, 0.5 mOhm standard level MOSFET in LFPAK88 Production
  • Download datasheet
BUK7S0R7-40H N-channel 40 V, 0.7 mΩ standard level MOSFET in LFPAK88 Production
  • Download datasheet
BUK7S1R0-40H N-channel 40 V, 1.0 mΩ standard level MOSFET in LFPAK88 Production
  • Download datasheet
BUK7S1R2-40H N-channel 40 V, 1.2 mΩ standard level MOSFET in LFPAK88 Production
  • Download datasheet
BUK7S1R5-40H N-channel 40 V, 1.5 mOhm standard level MOSFET in LFPAK88 Production
  • Download datasheet
BUK7S2R0-40H N-channel 40 V, 2 mOhm standard level MOSFET in LFPAK88 Production
  • Download datasheet
BUK7S2R5-40H N-channel 40 V, 2.5 mOhm standard level MOSFET in LFPAK88 Production
  • Download datasheet

MOSFETs

Type number Description Status Quick access
BUK7S0R5-40H N-channel 40 V, 0.5 mOhm standard level MOSFET in LFPAK88 Production
  • Download datasheet
BUK7S0R7-40H N-channel 40 V, 0.7 mΩ standard level MOSFET in LFPAK88 Production
  • Download datasheet
BUK7S1R0-40H N-channel 40 V, 1.0 mΩ standard level MOSFET in LFPAK88 Production
  • Download datasheet
BUK7S1R2-40H N-channel 40 V, 1.2 mΩ standard level MOSFET in LFPAK88 Production
  • Download datasheet
BUK7S1R5-40H N-channel 40 V, 1.5 mOhm standard level MOSFET in LFPAK88 Production
  • Download datasheet
BUK7S2R0-40H N-channel 40 V, 2 mOhm standard level MOSFET in LFPAK88 Production
  • Download datasheet
BUK7S2R5-40H N-channel 40 V, 2.5 mOhm standard level MOSFET in LFPAK88 Production
  • Download datasheet
PSMN1R0-40SSH N-channel 40 V, 1 mΩ, 325 Amps continuous, standard level MOSFET in LFPAK88 using NextPowerS3 Technology Production
  • Download datasheet
PSMN1R1-50SLH N-channel 50 V, 1.18 mOhm, 280 A logic level MOSFET in LFPAK88 using NextPower-S3 Schottky-Plus technology Development
  • Download datasheet
PSMN1R2-55SLH N-channel 55 V, 1.03 mOhm, 330 A logic level Application Specific MOSFET in LFPAK88 Production
  • Download datasheet
PSMN1R8-80SSF NextPower 80 V, 1.8 mOhm, 270 Amp, N-channel MOSFET in LFPAK88 package Development
  • Download datasheet
PSMN1R9-80SSE N-channel 80 V, 1.9 mOhm MOSFET with enhanced SOA in LFPAK88 Development
  • Download datasheet
PSMN2R0-100SSF NextPower 100 V, 2.07 mOhm, 267 Amp, N-channel MOSFET in LFPAK88 package Development
  • Download datasheet
PSMN2R3-100SSE N-channel 100 V, 2.3 mOhm MOSFET with enhanced SOA in LFPAK88 Development
  • Download datasheet
PSMN2R3-80SSF NextPower 80 V, 2.3 mΩ, 190 Amp, N-channel MOSFET in LFPAK88 package Development
  • Download datasheet
PSMN2R6-100SSF NextPower 100 V, 2.6 mΩ, 200 Amp, N-channel MOSFET in LFPAK88 package Development
  • Download datasheet
PSMN2R9-100SSE N-channel 100 V, 2.9 mOhm MOSFET with enhanced SOA in LFPAK88 Development
PSMN3R3-100SSF NextPower 100 V, 3.3 mΩ, 190 Amp, N-channel MOSFET in LFPAK88 package Development
  • Download datasheet
PSMNR55-40SSH N-channel 40 V, 0.55 mOhm, 500 Amps continuous, standard level MOSFET in LFPAK88 using NextPowerS3 Technology Production
  • Download datasheet
PSMNR70-40SSH N-channel 40 V, 0.7 mΩ, 425 Amps continuous, standard level MOSFET in LFPAK88 using NextPowerS3 Technology Production
  • Download datasheet
PSMNR90-50SLH N-channel 50 V, 0.90 mOhm, 410 A logic level Application Specific MOSFET in LFPAK88 Production
  • Download datasheet

Documentation

File name Title Type Date
AN10273 Power MOSFET single-shot and repetitive avalanche ruggedness rating Application note 2020-07-02

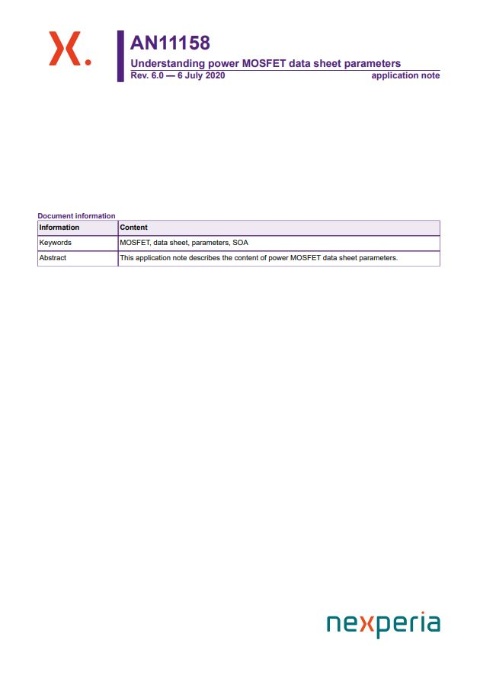

AN11158 Understanding power MOSFET data sheet parameters Application note 2020-07-06
TN00008 Power MOSFET frequently asked questions and answers Technical note 2020-06-24

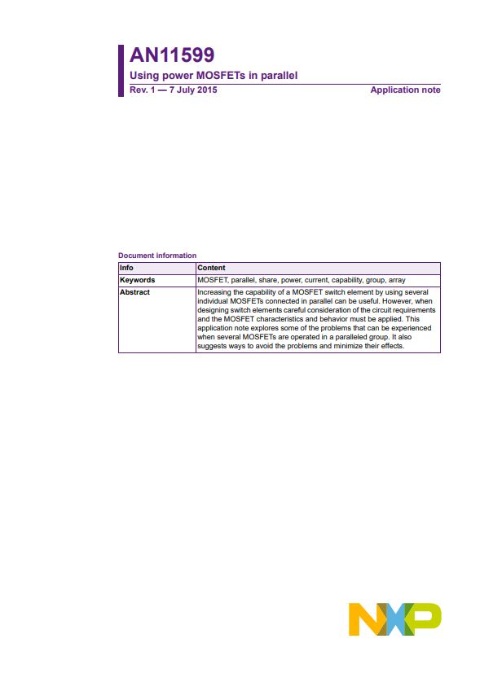

AN11599 Using power MOSFETs in parallel Application note 2016-07-13
AN90003 LFPAK MOSFET thermal design guide Application note 2021-01-22
LFPAK88_sot1235_mk plastic, single-ended surface-mounted package (LFPAK88); 4 leads; 2 mm pitch; 8 mm x 8 mm x 1.6 mm body Marcom graphics 2019-04-10
AN90016 Maximum continuous currents in NEXPERIA LFPAK power MOSFETs Application note 2020-09-03
AN90017 Load switches for mobile and computing applications Application note 2020-09-02
nexperia_document_leaflet_LFPAK88_2022_CHN LFPAK88 将功率密度提升到新高度 Leaflet 2022-03-10
Nexperia_Selection_guide_2022 Nexperia Selection Guide 2022 Selection guide 2022-01-05
nexperia_document_leaflet_LFPAK88_2022 LFPAK88 - Driving power-density to the next level Leaflet 2022-03-09

If you have a support question, let us know. If you are in need of design support, let us know and fill in the answer form, we’ll get back to you shortly.

Or contact us for further support.

Datasheets (20)

File name Title Type Date
BUK7S0R5-40H N-channel 40 V, 0.5 mOhm standard level MOSFET in LFPAK88 Data sheet 2021-04-06
BUK7S0R7-40H N-channel 40 V, 0.7 mΩ standard level MOSFET in LFPAK88 Data sheet 2019-05-07
BUK7S1R0-40H N-channel 40 V, 1.0 mΩ standard level MOSFET in LFPAK88 Data sheet 2022-03-28
BUK7S1R2-40H N-channel 40 V, 1.2 mOhm standard level MOSFET in LFPAK88 Data sheet 2020-08-07
BUK7S1R5-40H N-channel 40 V, 1.5 mOhm standard level MOSFET in LFPAK88 Data sheet 2020-08-07
BUK7S2R0-40H N-channel 40 V, 2 mOhm standard level MOSFET in LFPAK88 Data sheet 2021-04-06
BUK7S2R5-40H N-channel 40 V, 2.5 mOhm standard level MOSFET in LFPAK88 Data sheet 2021-04-06
PSMN1R0-40SSH N-channel 40 V, 1 mΩ, 325 Amps continuous, standard level MOSFET in LFPAK88 using NextPowerS3 Technology Data sheet 2019-05-07
PSMN1R1-50SLH N-channel 50 V, 1.18 mOhm, 280 A logic level MOSFET in LFPAK88 using NextPower-S3 Schottky-Plus technology Data sheet 2021-01-08
PSMN1R2-55SLH N-channel 55 V, 1.03 mOhm, 330 A logic level Application Specific MOSFET in LFPAK88 Data sheet 2022-02-28
PSMN1R8-80SSF NextPower 80 V, 1.8 mOhm, 270 Amp, N-channel MOSFET in LFPAK88 package Data sheet 2022-03-18
PSMN1R9-80SSE N-channel 80 V, 1.9 mOhm MOSFET with enhanced SOA in LFPAK88 Data sheet 2021-11-01
PSMN2R0-100SSF NextPower 100 V, 2.07 mOhm, 267 Amp, N-channel MOSFET in LFPAK88 package Data sheet 2021-09-06
PSMN2R3-100SSE N-channel 100 V, 2.3 mOhm MOSFET with enhanced SOA in LFPAK88 Data sheet 2021-09-07
PSMN2R3-80SSF NextPower 80 V, 2.3 mΩ, 190 Amp, N-channel MOSFET in LFPAK88 package Data sheet 2021-04-16
PSMN2R6-100SSF NextPower 100 V, 2.6 mΩ, 200 Amp, N-channel MOSFET in LFPAK88 package Data sheet 2020-06-09
PSMN3R3-100SSF NextPower 100 V, 3.3 mΩ, 190 Amp, N-channel MOSFET in LFPAK88 package Data sheet 2020-06-09
PSMNR55-40SSH N-channel 40 V, 0.55 mOhm, 500 Amps continuous, standard level MOSFET in LFPAK88 using NextPowerS3 Technology Data sheet 2021-04-06
PSMNR70-40SSH N-channel 40 V, 0.7 mΩ, 425 Amps continuous, standard level MOSFET in LFPAK88 using NextPowerS3 Technology Data sheet 2019-06-19
PSMNR90-50SLH N-channel 50 V, 0.90 mOhm, 410 A logic level Application Specific MOSFET in LFPAK88 Data sheet 2022-03-15
Efficiency wins

Products

  • Bipolar transistors
  • Diodes
  • ESD protection, TVS, signal conditioning
  • MOSFETs
  • GaN FETs
  • Analog & Logic ICs
  • Automotive

Tools & Support

  • Packages
  • Quality portal
  • Request IMDS upload
  • Documentation center
  • Technical support

About Nexperia

  • Distributor locations
  • Careers
  • Contact
  • Monthly newsletter
  • Privacy Policy
  • Terms of use
  • Terms & Conditions
  • 粤ICP备17077980
  • Contact us

Ever used a chatbot for any questions? I’m called Nano. Why don’t you give it a try?

Nexperia Chatbot

Cart

This product was successfully added to your cart

Something went wrong, please try again later.

You have %% in your shopping cart.

Order more products
Checkout as guest
Checkout as My Nexperia user
