Key features and benefits
- Delivers optimized MOSFET performance in a compact 10.9 mm² footprint.
- Industry standard 3.3 × 3.3 mm package for easy PCB integration.
- Offers a smart balance between cost and performance.
- Features micro-leads for solder wettability.
- Includes an exposed heat sink for low thermal resistance.
- Low RDS(on) down to 3.7 mΩ.
- Expanding range of 30 V, 40 V, 60 V, and 100 V ratings.
- Covers both N-channel and P-channel devices in standard and logic-level variants.
- Side-wettable flank, automotive-grade (AEC-Q101) package option available, denoted by -WF suffix.
Applications
- Brushless DC motor control
- DC to DC solutions
- Fast charging for mobile and wearables
- Low-power adaptors
- Solid state / hard drive
- Automotive LED
- ADAS
Featured products
Featured documents
Parametric search

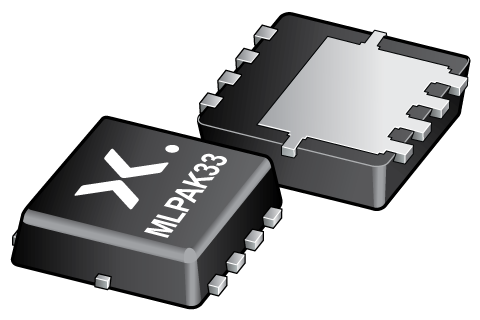

MLPAK33 MOSFETs
Please wait loading data... Parametric search is unavailable.
Products
MOSFETs
| Type number | Description | Status | Quick access |
|---|---|---|---|
| BUK7Q8R4-40H | Standard level N-Channel MOSFET in MLPAK33-WF (SOT8002-3D) | Qualification | |
| BUK7Q9R5-40H | Standard level N-Channel MOSFET in MLPAK33-WF (SOT8002-3D) | Qualification | |
| BUK9Q12-40H | Logic level N-Channel MOSFET in MLPAK33-WF (SOT8002-3D) | Qualification | |
| BUK9Q20-40H | Logic level N-Channel MOSFET in MLPAK33-WF (SOT8002-3D) | Qualification | |
| PXN010-30QL | 30 V, N-channel Trench MOSFET | Production | |
| PXN011-100QL | N-channel 100 V, 11 mOhm, logic level Trench MOSFET in MLPAK33 | Production | |
| PXN011-100QS | N-channel 100 V, 11 mOhm, standard level Trench MOSFET in MLPAK33 | Production | |
| PXN011-60QLA | N-channel 60 V, 11 mOhm, logic level Trench MOSFET in MLPAK33 | Production | |
| PXN012-100QL | N-channel 100 V, 12 mOhm, logic level Trench MOSFET in MLPAK33 | Production | |
| PXN012-100QS | N-channel 100 V, 12 mOhm, standard level Trench MOSFET in MLPAK33 | Production | |
| PXN012-60QL | N-channel 60 V, 11.5 mOhm, logic level Trench MOSFET in MLPAK33 | Production | |
| PXN014-100QE | 100 V, N-channel Trench MOSFET | Production | |
| PXN014-60QLA | N-channel 60 V, 14 mOhm, logic level Trench MOSFET in MLPAK33 | Production | |
| PXN017-30QL | 30 V, N-channel Trench MOSFET | Production | |
| PXN018-30QL | 30 V, N-channel Trench MOSFET | Production | |
| PXN020-100QS | N-channel 100 V, 20 mOhm, standard level Trench MOSFET in MLPAK33 | Production | |
| PXN028-100QL | N-channel 100 V, 28 mOhm, logic level Trench MOSFET in MLPAK33 | Production | |
| PXN040-100QS | N-channel 100 V, 40 mOhm, standard level Trench MOSFET in MLPAK33 | Production | |
| PXN4R0-30QLA | N-channel 30 V, 4.0 mOhm, logic level Trench MOSFET in MLPAK33 | Qualification | |
| PXN4R7-30QL | 30 V, N-channel Trench MOSFET | Production | |
| PXN5R0-30QLA | N-channel 30 V, 5.0 mOhm, logic level Trench MOSFET in MLPAK33 | Qualification | |
| PXN5R4-30QL | 30 V, N-channel Trench MOSFET | Production | |
| PXN5R7-60QLA | N-channel 60 V, 5.7 mOhm, logic level Trench MOSFET in MLPAK33 | Production | |
| PXN6R2-25QL | 25 V, N-channel Trench MOSFET | Production | |
| PXN6R2-60QLA | N-channel 60 V, 6.2 mOhm, logic level Trench MOSFET in MLPAK33 | Production | |
| PXN6R7-30QL | 30 V, N-channel Trench MOSFET | Production | |
| PXN6R8-60QLA | N-channel 60 V, 6.8 mOhm, logic level Trench MOSFET in MLPAK33 | Production | |
| PXN7R0-30QLA | N-channel 30 V, 7.0 mOhm, logic level Trench MOSFET in MLPAK33 | Qualification | |
| PXN7R7-25QL | 25 V, N-channel Trench MOSFET | Production | |
| PXN7R7-60QLA | N-channel 60 V, 7.7 mOhm, logic level Trench MOSFET in MLPAK33 | Production | |
| PXN8R3-30QL | 30 V, N-channel Trench MOSFET | Production | |
| PXN9R0-30QL | 30 V, N-channel Trench MOSFET | Production | |
| PXN9R1-60QLA | N-channel 60 V, 9.1 mOhm, logic level Trench MOSFET in MLPAK33 | Production | |
| PXP010-20QX | 20 V, P-channel Trench MOSFET | EndOfLife | |
| PXP011-20QX | 20 V, P-channel Trench MOSFET | Production | |
| PXP012-30QL | 30 V, P-channel Trench MOSFET | Production | |
| PXP013-30QL | 30 V, P-channel Trench MOSFET | Production | |
| PXP015-30QL | 30 V, P-channel Trench MOSFET | Production | |
| PXP018-20QX | 20 V, P-channel Trench MOSFET | Production | |
| PXP018-30QL | 30 V, P-channel Trench MOSFET | EndOfLife | |
| PXP020-20QX | 20 V, P-channel Trench MOSFET | Production | |
| PXP062-60QL | 60 V, P-channel Trench MOSFET | Production | |
| PXP1500-100QS | 100 V, P-channel Trench MOSFET | Production | |
| PXP3R7-12QU | 12 V, P-channel Trench MOSFET | Production | |
| PXP400-100QS | 100 V, P-channel Trench MOSFET | Production | |
| PXP6R1-30QL | 30 V, P-channel Trench MOSFET | Production | |
| PXP700-150QS | 150 V, P-channel Trench MOSFET | Production | |
| PXP8R3-20QX | 20 V, P-channel Trench MOSFET | Production | |
| PXP9R1-30QL | 30 V, P-channel Trench MOSFET | Production |
Documentation
| File name | Title | Type | Date |
|---|---|---|---|

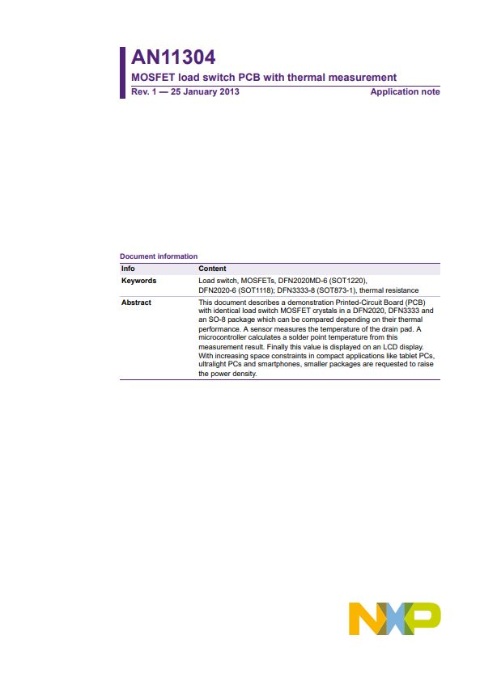

| AN11304.pdf | MOSFET load switch PCB with thermal measurement | Application note | 2013-01-28 |
| AN11119.pdf | Medium power small-signal MOSFETs in DC-to-DC conversion | Application note | 2013-05-07 |
| AN11599.pdf | Using power MOSFETs in parallel | Application note | 2016-07-13 |
| AN10441.pdf | Level shifting techniques in I2C-bus design | Application note | 2020-02-11 |
| AN90017.pdf | Load switches for mobile and computing applications | Application note | 2020-09-02 |
| AN11156.pdf | Using Power MOSFET Zth Curves | Application note | 2021-01-04 |
| RS3472_RS2943_MLPAK33_Combi.png | MLPAK33 (SOT8002-2) Combi | Marcom graphics | 2021-04-21 |
| vp_MLPAK33_MOSFETs.zip | MLPAK33 MOSFETs | Value proposition | 2021-04-21 |
| SOT8002_1.step | 3D model for products with SOT8002-1 package | Design support | 2021-04-30 |
| AN50005.pdf | Paralleling power MOSFETs in high power applications | Application note | 2021-09-13 |
| AN90032.pdf | Low temperature soldering, application study | Application note | 2022-02-22 |
| AN50014.pdf | Understanding the MOSFET peak drain current rating | Application note | 2022-03-28 |
| AN10273.pdf | Power MOSFET single-shot and repetitive avalanche ruggedness rating | Application note | 2022-06-20 |
| AN90001.pdf | Designing in MOSFETs for safe and reliable gate-drive operation | Application note | 2024-10-28 |
| AN11243.pdf | Failure signature of Electrical Overstress on Power MOSFETs | Application note | 2025-03-20 |
| AN50006.pdf | Power MOSFETs in linear mode | Application note | 2025-07-31 |
| AN11158.pdf | Understanding power MOSFET data sheet parameters | Application note | 2025-08-15 |
| AN11160.pdf | Designing RC Snubbers | Application note | 2025-08-15 |
| AN11261.pdf | RC Thermal Models | Application note | 2025-08-15 |
| AN50019.pdf | Thermal boundary condition study on MOSFET packages and PCB substrates | Application note | 2025-08-15 |
| AN90011.pdf | Half-bridge MOSFET switching and its impact on EMC | Application note | 2025-08-15 |
| AN90059.pdf | Power MOSFET gate driver fundamentals | Application note | 2025-08-15 |
