Medical diagnostics and therapy

Medical diagnostic and therapy systems often include numerous sensors along with actuators and pumps. From a simple temperature sensor and ultrasonic actuator all the way up to multiple sensors driving pumps for blood, insulin, adrenalin or oxygen. This can be achieved through simple cost-effective stepper or full 3-phase motors. Importantly, whether static mains powered or battery-powered portable devices, they all have to perform to exacting standards.

  • Overview

Block diagram

Highlighted components are Nexperia focus products

Products

  • Analog switches: HC(T) / XS5A
  • Digital multiplexer: HC
  • Signal conditioning: HC(T) / LVC Schmitt-trigger
  • Voltage translators (level-shifters)
  • ESD protection: 3.3 - 5 V, low frequency

Products: Motor / actuator control

  • 3-phase motor: MOSFETs, 25-40 V, LFPAK
  • Actuators: Small-signal MOSFETs, 30 V, N-channel

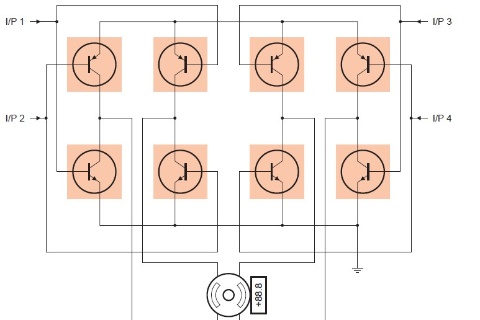

  • Stepper motor: Bipolar transistors, <40 V, 1-10 W

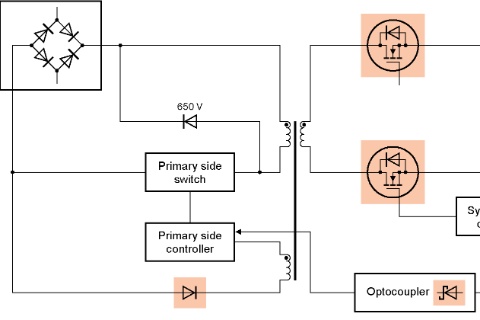

Products: AC/DC

  • Schottky diodes: IF ≥ 1 A
  • Rectifier diodes: SiGe, Vr = 120 V
  • Secondary side MOSFETs: 60-100 V, MLPAK33
  • Voltage regulation optocoupler: Adjustable shunt regulators

Design challenges

  • Power management needs to be carefully controlled and isolated
  • Range of actuators and motors from simple switch and cost-effective steppers to 3-phase motors for fine control over pumps.
  • Protection of sensitive electronics from potential ESD spikes
  • Reliable and efficient DC:DC conversion through combination of low-voltage MOSFETs in LFPAK and CFP Schottky Diodes
  • Enhanced forward biased safe operating area for superior linear mode operation
