USB Type-C smartphone

Our phones and tablets are firmly ensconced in our lives – indispensable tools for information, networking, entertainment and a whole range of services from banking to calorie counting. Smart and rapid charging options via USB Type-C help us ensure our batteries are always topped up and ready to go whenever we are. Type-C also gives us the option to transfer data quickly and securely.

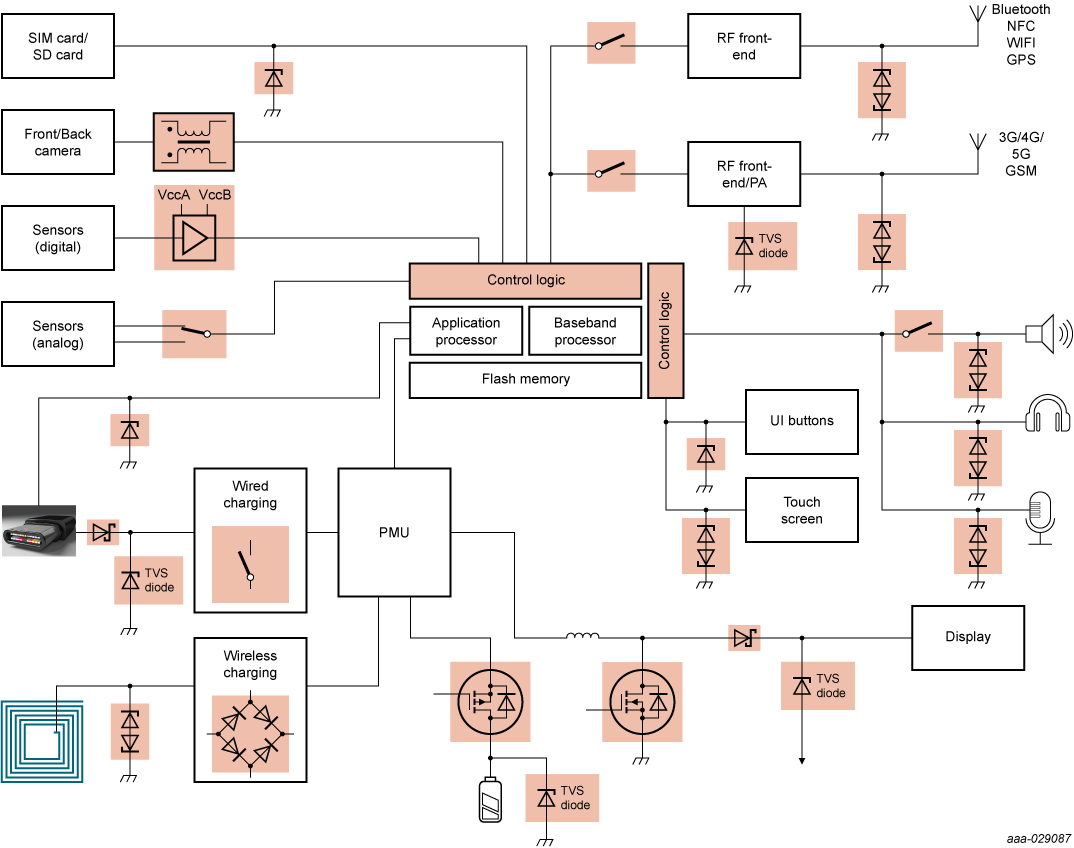

Block diagram

Design considerations

  • Need to eliminate noise and interferance to and from wireless interfaces, including GSM, LTE, WiFi and Bluetooth
  • Mix of protection needs for USB3.0, USB2.0, Vbus and Configuration Channel (CC) logic .

Three new series of common mode EMI filters with integrated ESD protection

Nexperia combines EMI and ESD protection for USB 3.1 Type C, HDMI 2.0 and MIPI M-PHY systems in single package with tiny footprint.



ESD Design Engineer’s Guide

Download Nexperia’s ESD Design Engineer’s Guide and get a better understanding of ESD protection topologies and failure symptoms as well as testing and simulation for modern interfaces
