LFPAK56 MOSFETs

The de facto power packaging standard

Providing a true alternative to DPAK and D2PAK, Nexperia’s LFPAK56 portfolio gives industry leading performance in a truly innovative package. Saving a considerable amount of space compared to traditional D2PAK and DPAK solutions, the LFPAK56 offers designers flexibility and reliability without compromising thermal performance.

Key features and benefits

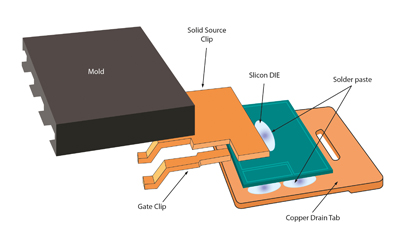

  • Copper clip - high ID max rating up to 220 A
  • Copper clip for low package inductance and resistance
  • Flexible leads for improved reliability
  • Exposed leds allow for easy optical inspection
  • Enhanced die size offering for reduced RDS(on) (LFPAK56E)
  • High current transisent robustness
  • Low thermal resistance
  • Extensive range, in logic level, standard level, N-Channel and P-Channel
  • 100% avalanche screened at high current for low PPM
  • Power SO8 footprint compatible

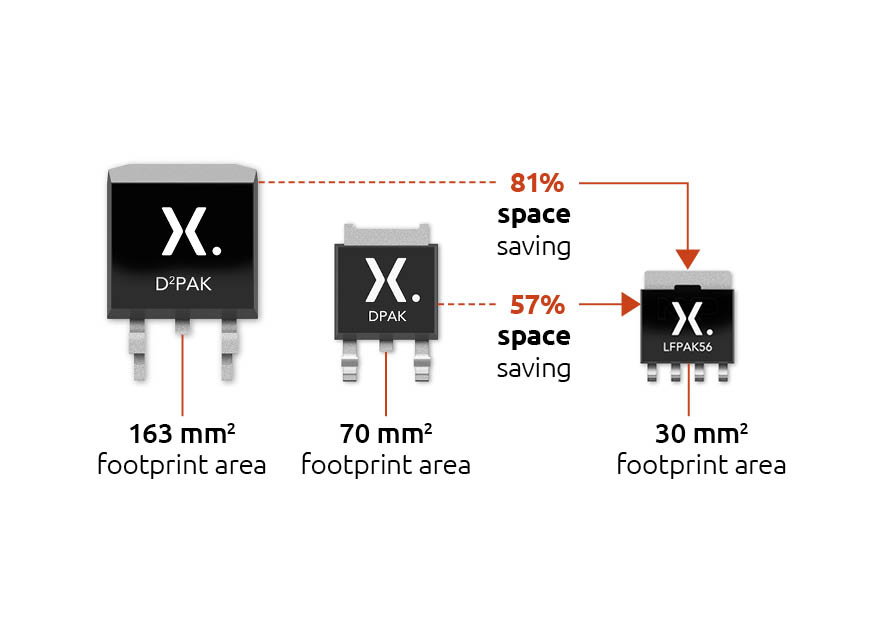

LFPAK56 offers 81% space saving compared to D2PAK and 57% compared to DPAK

Featured products

PSMNR51-25YLH

PSMNR51-25YLH

N-Ch, 25 V, 0.57 mΩ, LL MOSFET in LFPAK56E
BUK6Y10-30P

BUK6Y10-30P

P-Ch, 30 V, 10 mΩ, SL MOSFET in LFPAK56
BUK9J0R9-40H

BUK9J0R9-40H

N-Ch, 40 V, 0.9 mΩ, LL MOSFET in LFPAK56E

Featured documents

LFPAK56

LFPAK56

Leaflet
LFPAK MOSFET thermal design guide

LFPAK MOSFET thermal design guide

AN90003
Maximum continuous currents in Nexperia LFPAK power MOSFETs

Maximum continuous currents in Nexperia LFPAK power MOSFETs

AN90016

Latest news and blogs

  • Press release
Aug 4, 2021

Nexperia’s new Application-Specific MOSFETs ...
  • Press release
Jun 24, 2021

First products from Nexperia’s new Manchester ...
  • Press release
May 7, 2020

Nexperia launches P-channel MOSFETs in robust, ...
  • Press release
Jan 29, 2020

Nexperia extends market-leading low RDS(on) MOSFET ...
  • Blog article
Feb 24, 2022

Efficient isolation for 36 V batteries
  • Blog article
Apr 26, 2022

JayKay: riding the power wave

Latest videos

Why is the Rth(j-mb) higher for LFPAK88 than for LFPAK56E?

Why is the Rth(j-mb) higher for LFPAK88 than for LFPAK56E?
JayKay - how LFPAK helped to revolutionize water sports
50/55 V ASFETs - The big pull
LFPAK 5x6 ASFETs with enhanced SOA technology for hotswap ...
High Current MOSFETs – the next level
LFPAK MOSFETs increasing to highest current in BLDC motor control

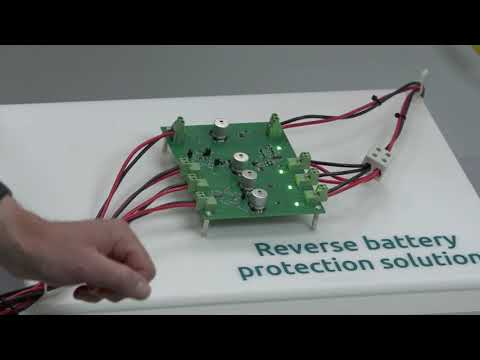

Reverse battery protection solutions
