Single bipolar transistors > 100 V

Our low power loss, fast bipolar families of high-voltage transistors are ideally suited to high frequency switching in any powered application

In need of bipolar transistors that can withstand high-voltage pulses (EMI requirements)? Then check out our high-voltage devices with breakdown voltages up to 400 V. Our HV transistors are fit for purpose for LCD backlighting, HID front lighting and half-bridge switches in CFL lighting applications.

Key features and benefits

  • High VCEO
  • Low VCEsat

Key applications

  • Hook switch for wired telecom
  • LED driver for high currents, LCD backlighting
  • Half-bridge switch in CFL lighting
  • Switched mode power supply (low power)
  • HID front lighting

Parametric search

Single bipolar transistors > 100 V
Please wait loading data...
Parametric search is unavailable.

Products

Type number Description Status Quick access
BSR19A NPN high voltage transistor Production
BF820 NPN high voltage transistor Production
BF823 PNP high voltage transistor Production
BF821 PNP high voltage transistor Production
BF822 NPN high voltage transistor Production
BSS63 PNP high-voltage transistor Production
MMBTA92 PNP high-voltage transistor Production
PBHV8118T 180 V, 1 A NPN high-voltage low VCEsat transistor Production
PBHV9414Z 140 V, 4 A PNP high-voltage low VCEsat transistor Production
PBHV8540T 500 V, 0.5 A NPN high-voltage low VCEsat transistor Production
PMST5551 NPN high-voltage transistor Production
PXTA92 300 V, 100 mA PNP high-voltage transistor Production
PMBTA42 300 V, 100 mA NPN high-voltage transistor Production
PMBTA92 PNP high-voltage transistor Production
PBHV8115T 150 V, 1 A NPN high-voltage low VCEsat transistor Production
PBHV9050T 500 V, 150 mA PNP high-voltage low VCEsat transistor Production
MMBTA42 NPN high-voltage transistor Production
PMBT5551 NPN high-voltage transistor Production
PMBTA44 400 V, 0.3 A NPN high-voltage low VCEsat transistor Production
PXTA42 300 V, 100 mA NPN high-voltage transistor Production
PBHV8115X 150 V, 1 A NPN high-voltage low VCEsat transistor Production
PMBT5550 NPN high-voltage transistor Production
PMSTA92 PNP high-voltage transistor Production
PZTA42 NPN high-voltage transistor Production
PZTA44 NPN high-voltage transistor Production
PZTA92 PNP high-voltage transistor Production
BF722 NPN high voltage transistor Production
BF622 NPN high-voltage transistor Production
BF621 PNP high-voltage transistor Production
BF620 NPN high-voltage transistor Production
BSP19 NPN high voltage transistor Production
BF723 PNP high voltage transistor Production
BF720 NPN high voltage transistor Production
BST39 NPN high-voltage transistors Production
BF623 PNP high-voltage transistor Production
PBHV8215Z 150 V, 2 A NPN high-voltage low VCEsat transistor Production
BF820W NPN high voltage transistor Production
PMST5550 NPN high-voltage transistor Production
PMSTA42 NPN high-voltage transistor Production
PBHV9540Z 500 V, 0.5 A PNP high-voltage low VCEsat transistor Production
PBHV2160Z 600 V, 0.1 A NPN high-voltage low VCEsat transistor Production
PBHV9215Z 150 V, 2 A PNP high-voltage low VCEsat transistor Production
PBHV9115X 150 V, 1 A PNP high-voltage low VCEsat transistor Production
PBHV9040T 500 V, 0.25 A PNP high-voltage low VCEsat transistor Production
PBHV9040Z 500 V, 0.25 A PNP high-voltage low VCEsat transistor Production
PBHV9115TLH 150 V, 1 A PNP high-voltage low VCEsat transistor Production
PBHV8115TLH 150 V, 1 A NPN high-voltage low VCEsat transistor Production
PBHV8560Z 600 V, 0.5 A NPN high-voltage low VCEsat transistor Production
PBHV9560Z 600 V, 0.5 A PNP high-voltage low VCEsat transistor Production
PBHV9540X 400 V, 0.5 A PNP high-voltage low VCEsa transistor Production
PBHV9115T 150 V, 1 A PNP high-voltage low VCEsat transistor Production
PBHV9115Z 150 V, 1 A PNP high-voltage low VCEsat transistor Production
PBHV9050Z 500 V, 250 mA PNP high-voltage low VCEsat transistor Production
PMBTA45 500 V, 150 mA NPN high-voltage low VCEsat transistor Production
PBHV8540X 500 V, 0.5 A NPN high-voltage low VCEsat transistor Production
PBHV8140Z 500 V, 1 A NPN high-voltage low VCEsat transistor Production
PBHV9040X 500 V, 0.25 A PNP high-voltage low VCEsat transistor Production
PBHV3160Z 600 V, 0.1 A PNP high-voltage low VCEsat transistor Production
PBHV8115Z 150 V, 1 A NPN high-voltage low VCEsat transistor Production
PBHV8540Z 500 V, 0.5 A NPN high-voltage low VCEsat transistor Production
BSS64 NPN high voltage transistor EndOfLife
PMBTA42-Q 300 V, 100 mA NPN high-voltage transistor Production
BSR19A-Q NPN high voltage transistor Production
PZTA92-Q PNP high-voltage transistor Production
BF820-Q NPN high voltage transistor Production
PBHV8540T-Q 500 V, 0.5 A NPN high-voltage low VCEsat transistor Production
PBSS5160T-Q 60 V, 1 A PNP low VCEsat transistor Production
PBHV8115T-Q 150 V, 1 A NPN high-voltage low VCEsat transistor Production
PZTA44-Q NPN high-voltage transistor Production
BF723-Q PNP high voltage transistor Production
PMBTA92-Q PNP high-voltage transistor Production
PBHV9050T-Q 500 V, 150 mA PNP high-voltage low VCEsat transistor Production
BF722-Q NPN high voltage transistor Production
MMBTA42-Q NPN high-voltage transistor Production
BF822-Q NPN high voltage transistor Production
BF622-Q NPN high-voltage transistor Production
PZTA42-Q NPN high voltage transistor Production
PMSTA92-Q PNP high-voltage transistor Production
PXTA42-Q 300 V, 100 mA NPN high-voltage transistor Production
BF823-Q PNP high voltage transistor Production
BF620-Q NPN high-voltage transistor Production
BSP19-Q NPN high voltage transistor Production
BF621-Q PNP high-voltage transistor Production
BSS63-Q PNP high-voltage transistor Production
PMST5551-Q NPN high-voltage transistor Production
PMSTA42-Q NPN high-voltage transistor Production
PBHV9414Z-Q 140 V, 4 A PNP high-voltage low VCEsat transistor Production
MMBTA92-Q PNP high-voltage transistor Production
PMST5550-Q NPN high-voltage transistor Production
BF623-Q PNP high-voltage transistor Production
PBHV8118T-Q 180 V, 1 A NPN high-voltage low VCEsat transistor Production
BF820W-Q NPN high voltage transistor Production
BF821-Q PNP high voltage transistor Production
PBHV8540X-Q 500 V, 0.5 A NPN high-voltage low VCEsat transistor Production
BST39-Q NPN high-voltage transistor Production
PXTA92-Q 300 V, 100 mA PNP high-voltage transistor Production
BF720-Q NPN high voltage transistor Production
PBHV8215Z-Q 150 V, 2 A NPN high-voltage low VCEsat transistor Production
PBHV8115X-Q 150 V, 1 A NPN high-voltage low VCEsat transistor Production
PMBT5550-Q NPN high-voltage transistor Production
PBHV8515QA 150 V, 500 mA NPN high-voltage low VCEsat (BISS) transistor Production
PBHV9515QA 150 V, 500 mA PNP high-voltage low VCEsat (BISS) transistor EndOfLife
PMBT5551-Q NPN high-voltage transistor Production
PMBTA44-Q 400 V, 0.3 A NPN high-voltage low VCEsat transistor Production
PBHV9040T-Q 500 V, 0.25 A PNP high-voltage low VCEsat transistor Production
PBHV9115X-Q 150 V, 1 A PNP high-voltage low VCEsat transistor Production
PBHV8560Z-Q 600 V, 0.5 A NPN high-voltage low VCEsat transistor Production
PBHV9115T-Q 150 V, 1 A PNP high-voltage low VCEsat transistor Production
PBHV9540X-Q 400 V, 0.5 A PNP high-voltage low VCEsa transistor Production
PBHV9115Z-Q 150 V, 1 A PNP high-voltage low VCEsat transistor Production
PBHV9050Z-Q 500 V, 250 mA PNP high-voltage low VCEsat transistor Production
PBHV8540Z-Q 500 V, 0.5 A NPN high-voltage low VCEsat transistor Production
PBHV9040Z-Q 500 V, 0.25 A PNP high-voltage low VCEsat transistor Production
PBHV9540Z-Q 500 V, 0.5 A PNP high-voltage low VCEsat transistor Production
PBHV9115TLH-Q 150 V, 1 A PNP high-voltage low VCEsat transistor Production
PBHV8115TLH-Q 150 V, 1 A NPN high-voltage low VCEsat transistor Production
PBHV9215Z-Q 150 V, 2 A PNP high-voltage low VCEsat transistor Production
PBHV9560Z-Q 600 V, 0.5 A PNP high-voltage low VCEsat transistor Production
PBHV9040X-Q 500 V, 0.25 A PNP high-voltage low VCEsat transistor Production
PMBTA45-Q 500 V, 150 mA NPN high-voltage low VCEsat transistor Production
PBHV8140Z-Q 500 V, 1 A NPN high-voltage low VCEsat transistor Production
PBHV8115Z-Q 150 V, 1 A NPN high-voltage low VCEsat transistor Production
PBHV8550X 500 V, 150 mA NPN high-voltage low VCEsat (BISS) transistor Production
Visit our documentation center for all documentation

Marcom graphics (1)

File name Title Type Date

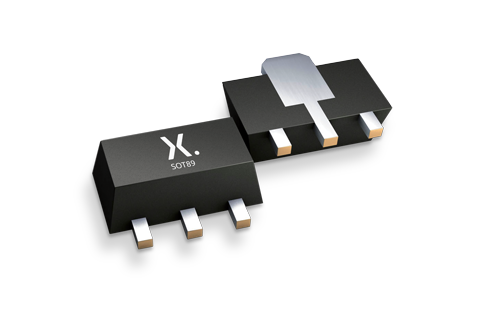

SOT89_mk.png plastic, surface-mounted package; 3 leads; 1.5 mm pitch; 4.5 mm x 2.5 mm x 1.5 mm body Marcom graphics 2017-01-28
