Automotive DFN packages

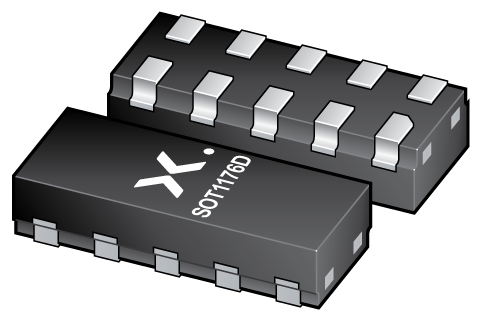

To satisfy an ever-increasing number of electronic functions, vehicles require more semiconductor components. Nexperia’s AEC-Q101 qualified leadless packages with side-wettable flanks help save space and minimize weight while ensuring the performance and efficiency of these components – especially at high temperatures. Automotive DFN (Discretes Flat No-leads) options exists across the full portfolio of diodes, bipolar transistors, and MOSFETs.

See the Nexperia package selector page, (filter on SWF to see packages with side-wettable flanks).

Related Blog posts:

Youtube video

Introducing Automotive DFN packages

Automotive DFN packages range - high component density

Table 1.
Package

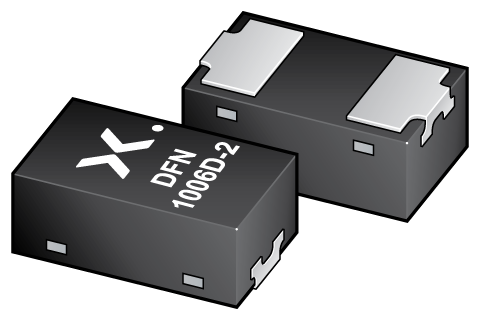

DFN1006BD-2

(SOD882BD-2)




DFN1110D-3

(SOT8015)

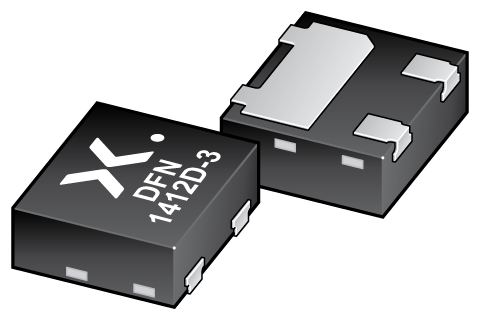

DFN1412D-3

(SOT8009)

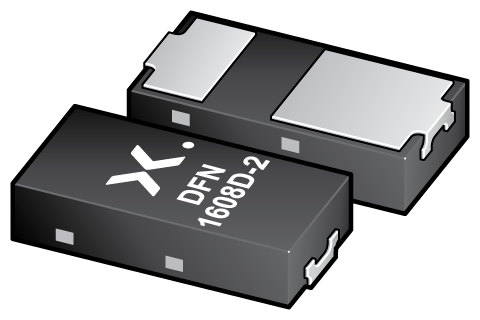

DFN1608D-2

(SOD1608)

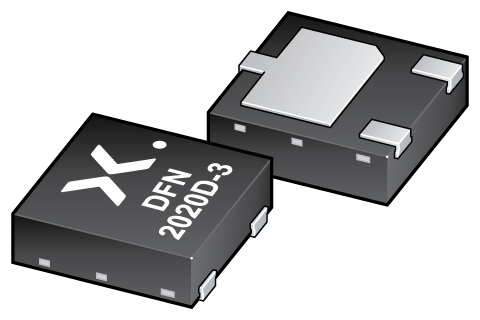

DFN2020D-3

(SOT1061D)

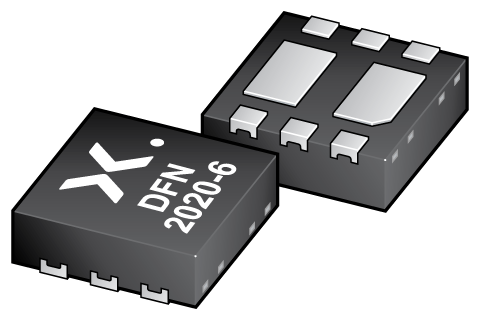

DFN2020D-6

(SOT1118D)

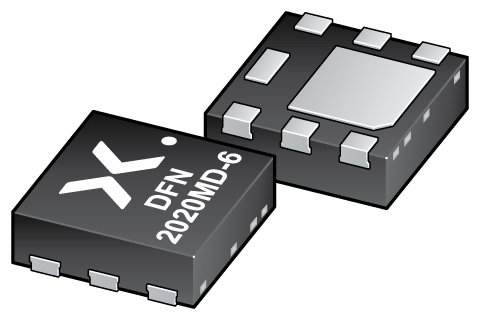

DFN2020MD-6

(SOT1220)

Package area mm²

0.6

1.1

1.68

1.28

4

4

4

Body size (l x w x h) (mm)

1.0 x 0.6 x 0.5

1.1 x 1.0 x 0.5

1.4 x 1.2 x 0.5

1.6 x 0.8 x 0.37

2.0 x 2.0 x 0.6

2.0 x 2.0 x 0.6

2.0 x 2.0 x 0.6

Rth(j-sp) (K/W)

46

60

53

20

16

25

5

Space efficient designs

DFN offers an equal electrical performance on a smaller footprint compared to standard SMD packages.




  • Ultra-compact footprint
  • Very low height
  • AEC-Q101 qualified alternatives exist for all leaded SMD packages

High thermal performance

  • High power dissipation (Ptot)
  • Low operating temperature extending the total system lifetime
  • Tj = 175 °C capability

AOI capable and reliable

  • Side-wettable flanks for easy automated optical inspection (AOI)
  • Robust solder joints, high reliability

Products

Bipolar transistors

Type number Description Status Quick access
BC51-10PAS 45 V/60 V/80 V, 1 A PNP medium power transistors Production
BC51-16PAS 45 V/60 V/80 V, 1 A PNP medium power transistors Production
BC51PAS 45 V/60 V/80 V, 1 A PNP medium power transistors Production
BC52-10PAS 45 V/60 V/80 V, 1 A PNP medium power transistors Production
BC52-16PAS 45 V/60 V/80 V, 1 A PNP medium power transistors Production
BC52PAS 45 V/60 V/80 V, 1 A PNP medium power transistors Production
BC53-10PAS 45 V/60 V/80 V, 1 A PNP medium power transistors Production
BC53-16PAS 45 V/60 V/80 V, 1 A PNP medium power transistors Production
BC53PAS 45 V/60 V/80 V, 1 A PNP medium power transistors Production
BC54-10PAS 45 V/60 V/80 V, 1 A NPN medium power transistors Production
BC54-16PAS 45 V/60 V/80 V, 1 A NPN medium power transistors Production
BC54PAS 45 V/60 V/80 V, 1 A NPN medium power transistors Production
BC55-10PAS 45 V/60 V/80 V, 1 A NPN medium power transistors Production
BC55-16PAS 45 V/60 V/80 V, 1 A NPN medium power transistors Production
BC55PAS 45 V/60 V/80 V, 1 A NPN medium power transistors Production
BC56-10PAS 45 V/60 V/80 V, 1 A NPN medium power transistors Production
BC56-16PAS 45 V/60 V/80 V, 1 A NPN medium power transistors Production
BC56PAS 45 V/60 V/80 V, 1 A NPN medium power transistors Production
BC68-25PAS 20 V, 2 A NPN medium power transistors Production
BC68PAS 20 V, 2 A NPN medium power transistors Production
BC69-16PAS 20 V, 2 A PNP medium power transistors Production
BC69-25PAS 20 V, 2 A PNP medium power transistors Production
BC69PAS 20 V, 2 A PNP medium power transistors Production
PBSS4160PANPS 60 V, 1 A NPN/NPN low VCEsat (BISS) transistor Production
PBSS4160PANS 60 V, 1 A NPN/NPN low VCEsat (BISS) transistor Production
PBSS4220PANS 20 V, 2 A NPN/NPN low VCEsat BISS double transistor Production
PBSS4260PANPS 60 V, 2 A NPN/PNP low VCEsat (BISS) double transistor Production
PBSS4260PANS 60 V, 2 A NPN/NPN low VCEsat (BISS) double transistor Production
PBSS5160PAPS 60 V, 1 A PNP/PNP low VCEsat (BISS) transistor Production
PBSS5220PAPS 20V, 2 A PNP/PNP low VCEsat (BISS) double transistor Production
PBSS5255PAPS 55V, 2A PNP/PNP low VCEsat (BISS) double transistor Production
PBSS5260PAPS 60 V, 2 A PNP/PNP low VCEsat (BISS) double transistor Production
BC807-16QB 45 V, 500 mA PNP general-purpose transistors Production
BC807-16QC Production
BC807-25QB 45 V, 500 mA PNP general-purpose transistors Production
BC807-25QC Production
BC807-40QB 45 V, 500 mA PNP general-purpose transistors Production
BC807-40QC Production
BC817-16QB 45 V, 500 mA NPN general-purpose transistors Production
BC817-16QC 45 V, 500 mA NPN general-purpose transistors Production
BC817-25QB 45 V, 500 mA NPN general-purpose transistors Production
BC817-25QC 45 V, 500 mA NPN general-purpose transistors Production
BC817-40QB 45 V, 500 mA NPN general-purpose transistors Production
BC817-40QC 45 V, 500 mA NPN general-purpose transistors Production
BC846AQC Production
BC846BQC Production
BC847AQB 45 V, 100 mA NPN general-purpose transistor Production
BC847AQC Production
BC847BQB 45 V, 100 mA NPN general-purpose transistor Production
BC847BQC Production
BC847CQB 45 V, 100 mA NPN general-purpose transistor Production
BC847CQC Production
BC857AQB 45 V, 100 mA PNP general-purpose transistors Production
BC857BQB 45 V, 100 mA PNP general-purpose transistors Production
BC857CQB 45 V, 100 mA PNP general-purpose transistors Production
NCR320PAS 250 mA LED driver in DFN2020D-6 Production
NCR321PAS 250 mA LED driver in DFN2020D-6 Production
NCR420PAS 150 mA LED driver in DFN2020D-6 Production
NCR421PAS 150 mA LED driver in DFN2020D-6 Production
PBSS4330PAS 30 V, 3 A NPN low VCEsat (BISS) transistor Production
PBSS4360PAS 60 V, 3 A NPN low VCEsat (BISS) transistor Production
PBSS5330PAS 30 V, 3 A PNP low VCEsat (BISS) transistor Production
PBSS5360PAS 60 V, 3A PNP low VCEsat (BISS) transistor Production

Automotive qualified products (AEC-Q100/Q101)

Type number Description Status Quick access
BC53-16PAS 45 V/60 V/80 V, 1 A PNP medium power transistors Production
BC53PAS 45 V/60 V/80 V, 1 A PNP medium power transistors Production
BC54-10PAS 45 V/60 V/80 V, 1 A NPN medium power transistors Production
BC54-16PAS 45 V/60 V/80 V, 1 A NPN medium power transistors Production
BC54PAS 45 V/60 V/80 V, 1 A NPN medium power transistors Production
BC55-10PAS 45 V/60 V/80 V, 1 A NPN medium power transistors Production
BC55-16PAS 45 V/60 V/80 V, 1 A NPN medium power transistors Production
BC55PAS 45 V/60 V/80 V, 1 A NPN medium power transistors Production
BC56-10PAS 45 V/60 V/80 V, 1 A NPN medium power transistors Production
BC56-16PAS 45 V/60 V/80 V, 1 A NPN medium power transistors Production
BC56PAS 45 V/60 V/80 V, 1 A NPN medium power transistors Production
PBSS4160PANPS 60 V, 1 A NPN/NPN low VCEsat (BISS) transistor Production
PBSS4160PANS 60 V, 1 A NPN/NPN low VCEsat (BISS) transistor Production
PBSS4220PANS 20 V, 2 A NPN/NPN low VCEsat BISS double transistor Production
PBSS4260PANPS 60 V, 2 A NPN/PNP low VCEsat (BISS) double transistor Production
PBSS4260PANS 60 V, 2 A NPN/NPN low VCEsat (BISS) double transistor Production
PBSS5160PAPS 60 V, 1 A PNP/PNP low VCEsat (BISS) transistor Production
PBSS5220PAPS 20V, 2 A PNP/PNP low VCEsat (BISS) double transistor Production
PBSS5255PAPS 55V, 2A PNP/PNP low VCEsat (BISS) double transistor Production
PBSS5260PAPS 60 V, 2 A PNP/PNP low VCEsat (BISS) double transistor Production
NCR320PAS 250 mA LED driver in DFN2020D-6 Production
NCR321PAS 250 mA LED driver in DFN2020D-6 Production
NCR420PAS 150 mA LED driver in DFN2020D-6 Production
NCR421PAS 150 mA LED driver in DFN2020D-6 Production
PBSS4330PAS 30 V, 3 A NPN low VCEsat (BISS) transistor Production
PBSS4360PAS 60 V, 3 A NPN low VCEsat (BISS) transistor Production
PBSS5330PAS 30 V, 3 A PNP low VCEsat (BISS) transistor Production
PBSS5360PAS 60 V, 3A PNP low VCEsat (BISS) transistor Production

Documentation

File name Title Type Date
RS2634_DFN1110D-3_Combi DFN1110D-3_Combi_image Marcom graphics 2020-06-09
Nexperia_document_whitepaper_DFN_Wave_Soldering_2020 Whitepaper: Can DFNs be successfully wave soldered? White paper 2020-09-01
AN90023 Thermal performance of DFN packages Application note 2020-11-23
AN90023_ZH Thermal performance of DFN packages Application note 2021-02-26

If you have a support question, let us know. If you are in need of design support, let us know and fill in the answer form, we’ll get back to you shortly.

Or contact us for further support.

Datasheets (16)

File name Title Type Date
BC51_52_53PAS_SER 45 V/60 V/80 V, 1 A PNP medium power transistors Data sheet 2018-08-28
BC54_55_56PAS_SER 45V/60V/80V, 1A NPN medium power transistors Data sheet 2018-08-28
BC807QB_SER 45 V, 500 mA PNP general-purpose transistors Data sheet 2020-12-10
BC807QC_SER 45 V, 500 mA PNP general-purpose transistors Data sheet 2021-01-04
BC817QB_SER 45 V, 500 mA NPN general-purpose transistors Data sheet 2020-10-28
BC817QC_SER 45 V, 500 mA NPN general-purpose transistors Data sheet 2020-10-28
BC846XQC_SER 65 V, 100 mA NPN general-purpose transistor Data sheet 2021-03-04
BC847XQB_SER 45 V, 100 mA NPN general-purpose transistor Data sheet 2020-01-24
BC847XQC_SER 45 V, 100 mA NPN general-purpose transistor Data sheet 2021-01-04
BC857XQB_SER 45 V, 100 mA PNP general-purpose transistor Data sheet 2021-02-22
NCR320PAS_NCR321PAS 250 mA LED driver in DFN2020D-6 Data sheet 2020-05-13
NCR420PAS_NCR421PAS 150 mA LED driver in DFN2020D-6 Data sheet 2020-05-13
PBSS4330PAS 30 V, 3 A NPN low VCEsat (BISS) transistor Data sheet 2017-05-22
PBSS4360PAS 60 V, 3 A NPN low VCEsat (BISS) transistor Data sheet 2020-06-29
PBSS5330PAS 30 V, 3 A PNP low VCEsat (BISS) transistor Data sheet 2017-05-22
PBSS5360PAS 60 V, 3A PNP low VCEsat (BISS) transistor Data sheet 2017-05-04
