Automotive DFN packages

To satisfy an ever-increasing number of electronic functions, vehicles require more semiconductor components. Nexperia’s AEC-Q101 qualified leadless packages with side-wettable flanks help save space and minimize weight while ensuring the performance and efficiency of these components – especially at high temperatures. Automotive DFN (Discretes Flat No-leads) options exists across the full portfolio of diodes, bipolar transistors, and MOSFETs.

See the Nexperia package selector page, (filter on SWF to see packages with side-wettable flanks).

Related Blog posts:

Youtube video

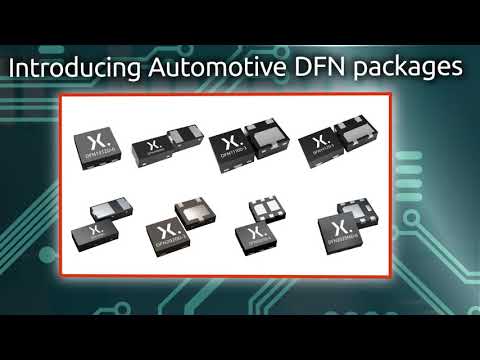

Introducing Automotive DFN packages

Automotive DFN packages range - high component density

Table 1.
Package


DFN1006BD-2

(SOD882BD-2)




DFN1110D-3

(SOT8015)




DFN1412D-3

(SOT8009)




DFN1608D-2

(SOD1608)




DFN2020D-3

(SOT1061D)




DFN2020D-6

(SOT1118D)




DFN2020MD-6

(SOT1220)

Package area mm²

0.6

1.1

1.68

1.28

4

4

4

Body size (l x w x h) (mm)

1.0 x 0.6 x 0.5

1.1 x 1.0 x 0.5

1.4 x 1.2 x 0.5

1.6 x 0.8 x 0.37

2.0 x 2.0 x 0.6

2.0 x 2.0 x 0.6

2.0 x 2.0 x 0.6

Rth(j-sp) (K/W)

46

60

53

20

16

25

5

Space efficient designs

DFN offers an equal electrical performance on a smaller footprint compared to standard SMD packages.




  • Ultra-compact footprint
  • Very low height
  • AEC-Q101 qualified alternatives exist for all leaded SMD packages

High thermal performance

  • High power dissipation (Ptot)
  • Low operating temperature extending the total system lifetime
  • Tj = 175 °C capability

AOI capable and reliable

  • Side-wettable flanks for easy automated optical inspection (AOI)
  • Robust solder joints, high reliability

Products

Automotive qualified products (AEC-Q100/Q101)

Type number Description Status Quick access
BZX884S-B10-Q Voltage regulator diodes Production
BZX884S-B11-Q Voltage regulator diodes Production
BZX884S-B12-Q Voltage regulator diodes Production
BZX884S-B13-Q Voltage regulator diodes Production
BZX884S-B15-Q Voltage regulator diodes Production
BZX884S-B16-Q Voltage regulator diodes Production
BZX884S-B18-Q Voltage regulator diodes Production
BZX884S-B20-Q Voltage regulator diodes Production
BZX884S-B22-Q Voltage regulator diodes Production
BZX884S-B24-Q Voltage regulator diodes Production
BZX884S-B27-Q Voltage regulator diodes Production
BZX884S-B2V4-Q Voltage regulator diodes Production
BZX884S-B2V7-Q Voltage regulator diodes Production
BZX884S-B30-Q Voltage regulator diodes Production
BZX884S-B33-Q Voltage regulator diodes Production
BZX884S-B36-Q Voltage regulator diodes Production
BZX884S-B39-Q Voltage regulator diodes Production
BZX884S-B3V0-Q Voltage regulator diodes Production
BZX884S-B3V3-Q Voltage regulator diodes Production
BZX884S-B3V6-Q Voltage regulator diodes Production
BZX884S-B3V9-Q Voltage regulator diodes Production
BZX884S-B43-Q Voltage regulator diodes Production
BZX884S-B47-Q Voltage regulator diodes Production
BZX884S-B4V3-Q Voltage regulator diodes Production
BZX884S-B4V7-Q Voltage regulator diodes Production
BZX884S-B51-Q Voltage regulator diodes Production
BZX884S-B56-Q Voltage regulator diodes Production
BZX884S-B5V1-Q Voltage regulator diodes Production
BZX884S-B5V6-Q Voltage regulator diodes Production
BZX884S-B62-Q Voltage regulator diodes Production
BZX884S-B68-Q Voltage regulator diodes Production
BZX884S-B6V2-Q Voltage regulator diodes Production
BZX884S-B6V8-Q Voltage regulator diodes Production
BZX884S-B75-Q Voltage regulator diodes Production
BZX884S-B7V5-Q Voltage regulator diodes Production
BZX884S-B8V2-Q Voltage regulator diodes Production
BZX884S-B9V1-Q Voltage regulator diodes Production
BZX884S-C10-Q Voltage regulator diodes Production
BZX884S-C11-Q Voltage regulator diodes Production
BZX884S-C12-Q Voltage regulator diodes Production
BZX884S-C13-Q Voltage regulator diodes Production
BZX884S-C15-Q Voltage regulator diodes Production
BZX884S-C16-Q Voltage regulator diodes Production
BZX884S-C18-Q Voltage regulator diodes Production
BZX884S-C20-Q Voltage regulator diodes Production
BZX884S-C22-Q Voltage regulator diodes Production
BZX884S-C24-Q Voltage regulator diodes Production
BZX884S-C27-Q Voltage regulator diodes Production
BZX884S-C2V4-Q Voltage regulator diodes Production
BZX884S-C2V7-Q Voltage regulator diodes Production
BZX884S-C30-Q Voltage regulator diodes Production
BZX884S-C33-Q Voltage regulator diodes Production
BZX884S-C36-Q Voltage regulator diodes Production
BZX884S-C39-Q Voltage regulator diodes Production
BZX884S-C3V0-Q Voltage regulator diodes Production
BZX884S-C3V3-Q Voltage regulator diodes Production
BZX884S-C3V6-Q Voltage regulator diodes Production
BZX884S-C3V9-Q Voltage regulator diodes Production
BZX884S-C43-Q Voltage regulator diodes Production
BZX884S-C47-Q Voltage regulator diodes Production
BZX884S-C4V3-Q Voltage regulator diodes Production
BZX884S-C4V7-Q Voltage regulator diodes Production
BZX884S-C51-Q Voltage regulator diodes Production
BZX884S-C56-Q Voltage regulator diodes Production
BZX884S-C5V1-Q Voltage regulator diodes Production
BZX884S-C5V6-Q Voltage regulator diodes Production
BZX884S-C62-Q Voltage regulator diodes Production
BZX884S-C68-Q Voltage regulator diodes Production
BZX884S-C6V2-Q Voltage regulator diodes Production
BZX884S-C6V8-Q Voltage regulator diodes Production
BZX884S-C75-Q Voltage regulator diodes Production
BZX884S-C7V5-Q Voltage regulator diodes Production
BZX884S-C8V2-Q Voltage regulator diodes Production
BZX884S-C9V1-Q Voltage regulator diodes Production
PMEG2005EPK 20 V, 0.5 A low VF MEGA Schottky barrier rectifier Production
PMEG2010EPK 20 V, 1 A low VF MEGA Schottky barrier rectifier Production
PMEG2015EPK 20 V, 1.5 A low VF MEGA Schottky barrier rectifier Production
PMEG2020EPK 20 V, 2 A low VF MEGA Schottky barrier rectifier Production
PMEG4005EPK 40 V, 0.5 A low VF MEGA Schottky barrier rectifier Production
PMEG4010EPK 40 V, 1 A low VF MEGA Schottky barrier rectifier Production
PMEG4015EPK 40 V, 1.5 A low VF MEGA Schottky barrier rectifier Production
PMEG4020EPK 40 V, 2 A low VF MEGA Schottky barrier rectifier Production
PMEG2010EPAS 20 V, 1 A low VF MEGA Schottky barrier rectifier Production
PMEG2020CPAS 20 V, 2 A low VF dual MEGA Schottky barrier rectifier Production
PMEG2020EPAS 20 V, 2 A low VF MEGA Schottky barrier rectifier Production
PMEG3020CPAS 30 V, 2 A low VF dual MEGA Schottky barrier rectifier Production
PMEG3020EPAS 30 V, 2 A low VF MEGA Schottky barrier rectifier Production
PMEG4020EPAS 40 V, 2 A low VF MEGA Schottky barrier rectifier Production
PMEG6010CPAS 60 V, 1 A low VF dual MEGA Schottky barrier rectifier Production
BAS16LS-Q High-speed switching diode Production
BAS21QB-Q High-voltage switching diode Production
BAS21QC-Q High-voltage switching diode Production
BAS40LS-Q General-purpose Schottky diode Production
BAS70LS-Q General-purpose Schottky diode Production
BAT54LS-Q Schottky barrier diode Production
BAT54QB-Q Schottky barrier diode Production
BAT54QC Schottky barrier diode Production
BAT54QC-Q Schottky barrier diode Production
BAV99QC-Q Dual series high-speed switching diodes Production

Diodes

Type number Description Status Quick access
BZX884S-B10 Voltage regulator diodes Production
BZX884S-B11 Voltage regulator diodes Production
BZX884S-B12 Voltage regulator diodes Production
BZX884S-B13 Voltage regulator diodes Production
BZX884S-B15 Voltage regulator diodes Production
BZX884S-B16 Voltage regulator diodes Production
BZX884S-B18 Voltage regulator diodes Production
BZX884S-B20 Voltage regulator diodes Production
BZX884S-B22 Voltage regulator diodes Production
BZX884S-B24 Voltage regulator diodes Production
BZX884S-B27 Voltage regulator diodes Production
BZX884S-B2V4 Voltage regulator diodes Production
BZX884S-B2V7 Voltage regulator diodes Production
BZX884S-B30 Voltage regulator diodes Production
BZX884S-B33 Voltage regulator diodes Production
BZX884S-B36 Voltage regulator diodes Production
BZX884S-B39 Voltage regulator diodes Production
BZX884S-B3V0 Voltage regulator diodes Production
BZX884S-B3V3 Voltage regulator diodes Production
BZX884S-B3V6 Voltage regulator diodes Production
BZX884S-B3V9 Voltage regulator diodes Production
BZX884S-B43 Voltage regulator diodes Production
BZX884S-B47 Voltage regulator diodes Production
BZX884S-B4V3 Voltage regulator diodes Production
BZX884S-B4V7 Voltage regulator diodes Production
BZX884S-B51 Voltage regulator diodes Production
BZX884S-B56 Voltage regulator diodes Production
BZX884S-B5V1 Voltage regulator diodes Production
BZX884S-B5V6 Voltage regulator diodes Production
BZX884S-B62 Voltage regulator diodes Production
BZX884S-B68 Voltage regulator diodes Production
BZX884S-B6V2 Voltage regulator diodes Production
BZX884S-B6V8 Voltage regulator diodes Production
BZX884S-B75 Voltage regulator diodes Production
BZX884S-B7V5 Voltage regulator diodes Production
BZX884S-B8V2 Voltage regulator diodes Production
BZX884S-B9V1 Voltage regulator diodes Production
BZX884S-C10 Voltage regulator diodes Production
BZX884S-C11 Voltage regulator diodes Production
BZX884S-C12 Voltage regulator diodes Production
BZX884S-C13 Voltage regulator diodes Production
BZX884S-C15 Voltage regulator diodes Production
BZX884S-C16 Voltage regulator diodes Production
BZX884S-C18 Voltage regulator diodes Production
BZX884S-C20 Voltage regulator diodes Production
BZX884S-C22 Voltage regulator diodes Production
BZX884S-C24 Voltage regulator diodes Production
BZX884S-C27 Voltage regulator diodes Production
BZX884S-C2V4 Voltage regulator diodes Production
BZX884S-C2V7 Voltage regulator diodes Production
BZX884S-C30 Voltage regulator diodes Production
BZX884S-C33 Voltage regulator diodes Production
BZX884S-C36 Voltage regulator diodes Production
BZX884S-C39 Voltage regulator diodes Production
BZX884S-C3V0 Voltage regulator diodes Production
BZX884S-C3V3 Voltage regulator diodes Production
BZX884S-C3V6 Voltage regulator diodes Production
BZX884S-C3V9 Voltage regulator diodes Production
BZX884S-C43 Voltage regulator diodes Production
BZX884S-C47 Voltage regulator diodes Production
BZX884S-C4V3 Voltage regulator diodes Production
BZX884S-C4V7 Voltage regulator diodes Production
BZX884S-C51 Voltage regulator diodes Production
BZX884S-C56 Voltage regulator diodes Production
BZX884S-C5V1 Voltage regulator diodes Production
BZX884S-C5V6 Voltage regulator diodes Production
BZX884S-C62 Voltage regulator diodes Production
BZX884S-C68 Voltage regulator diodes Qualification
BZX884S-C6V2 Voltage regulator diodes Production
BZX884S-C6V8 Voltage regulator diodes Production
BZX884S-C75 Voltage regulator diodes Production
BZX884S-C7V5 Voltage regulator diodes Production
BZX884S-C8V2 Voltage regulator diodes Production
BZX884S-C9V1 Voltage regulator diodes Production
BZX884S-B10-Q Voltage regulator diodes Production
BZX884S-B11-Q Voltage regulator diodes Production
BZX884S-B12-Q Voltage regulator diodes Production
BZX884S-B13-Q Voltage regulator diodes Production
BZX884S-B15-Q Voltage regulator diodes Production
BZX884S-B16-Q Voltage regulator diodes Production
BZX884S-B18-Q Voltage regulator diodes Production
BZX884S-B20-Q Voltage regulator diodes Production
BZX884S-B22-Q Voltage regulator diodes Production
BZX884S-B24-Q Voltage regulator diodes Production
BZX884S-B27-Q Voltage regulator diodes Production
BZX884S-B2V4-Q Voltage regulator diodes Production
BZX884S-B2V7-Q Voltage regulator diodes Production
BZX884S-B30-Q Voltage regulator diodes Production
BZX884S-B33-Q Voltage regulator diodes Production
BZX884S-B36-Q Voltage regulator diodes Production
BZX884S-B39-Q Voltage regulator diodes Production
BZX884S-B3V0-Q Voltage regulator diodes Production
BZX884S-B3V3-Q Voltage regulator diodes Production
BZX884S-B3V6-Q Voltage regulator diodes Production
BZX884S-B3V9-Q Voltage regulator diodes Production
BZX884S-B43-Q Voltage regulator diodes Production
BZX884S-B47-Q Voltage regulator diodes Production
BZX884S-B4V3-Q Voltage regulator diodes Production
BZX884S-B4V7-Q Voltage regulator diodes Production
BZX884S-B51-Q Voltage regulator diodes Production
BZX884S-B56-Q Voltage regulator diodes Production
BZX884S-B5V1-Q Voltage regulator diodes Production
BZX884S-B5V6-Q Voltage regulator diodes Production
BZX884S-B62-Q Voltage regulator diodes Production
BZX884S-B68-Q Voltage regulator diodes Production
BZX884S-B6V2-Q Voltage regulator diodes Production
BZX884S-B6V8-Q Voltage regulator diodes Production
BZX884S-B75-Q Voltage regulator diodes Production
BZX884S-B7V5-Q Voltage regulator diodes Production
BZX884S-B8V2-Q Voltage regulator diodes Production
BZX884S-B9V1-Q Voltage regulator diodes Production
BZX884S-C10-Q Voltage regulator diodes Production
BZX884S-C11-Q Voltage regulator diodes Production
BZX884S-C12-Q Voltage regulator diodes Production
BZX884S-C13-Q Voltage regulator diodes Production
BZX884S-C15-Q Voltage regulator diodes Production
BZX884S-C16-Q Voltage regulator diodes Production
BZX884S-C18-Q Voltage regulator diodes Production
BZX884S-C20-Q Voltage regulator diodes Production
BZX884S-C22-Q Voltage regulator diodes Production
BZX884S-C24-Q Voltage regulator diodes Production
BZX884S-C27-Q Voltage regulator diodes Production
BZX884S-C2V4-Q Voltage regulator diodes Production
BZX884S-C2V7-Q Voltage regulator diodes Production
BZX884S-C30-Q Voltage regulator diodes Production
BZX884S-C33-Q Voltage regulator diodes Production
BZX884S-C36-Q Voltage regulator diodes Production
BZX884S-C39-Q Voltage regulator diodes Production
BZX884S-C3V0-Q Voltage regulator diodes Production
BZX884S-C3V3-Q Voltage regulator diodes Production
BZX884S-C3V6-Q Voltage regulator diodes Production
BZX884S-C3V9-Q Voltage regulator diodes Production
BZX884S-C43-Q Voltage regulator diodes Production
BZX884S-C47-Q Voltage regulator diodes Production
BZX884S-C4V3-Q Voltage regulator diodes Production
BZX884S-C4V7-Q Voltage regulator diodes Production
BZX884S-C51-Q Voltage regulator diodes Production
BZX884S-C56-Q Voltage regulator diodes Production
BZX884S-C5V1-Q Voltage regulator diodes Production
BZX884S-C5V6-Q Voltage regulator diodes Production
BZX884S-C62-Q Voltage regulator diodes Production
BZX884S-C68-Q Voltage regulator diodes Production
BZX884S-C6V2-Q Voltage regulator diodes Production
BZX884S-C6V8-Q Voltage regulator diodes Production
BZX884S-C75-Q Voltage regulator diodes Production
BZX884S-C7V5-Q Voltage regulator diodes Production
BZX884S-C8V2-Q Voltage regulator diodes Production
BZX884S-C9V1-Q Voltage regulator diodes Production
PMEG2005EPK 20 V, 0.5 A low VF MEGA Schottky barrier rectifier Production
PMEG2010EPK 20 V, 1 A low VF MEGA Schottky barrier rectifier Production
PMEG2015EPK 20 V, 1.5 A low VF MEGA Schottky barrier rectifier Production
PMEG2020EPK 20 V, 2 A low VF MEGA Schottky barrier rectifier Production
PMEG4005EPK 40 V, 0.5 A low VF MEGA Schottky barrier rectifier Production
PMEG4010EPK 40 V, 1 A low VF MEGA Schottky barrier rectifier Production
PMEG4015EPK 40 V, 1.5 A low VF MEGA Schottky barrier rectifier Production
PMEG4020EPK 40 V, 2 A low VF MEGA Schottky barrier rectifier Production
PMEG2010EPAS 20 V, 1 A low VF MEGA Schottky barrier rectifier Production
PMEG2020CPAS 20 V, 2 A low VF dual MEGA Schottky barrier rectifier Production
PMEG2020EPAS 20 V, 2 A low VF MEGA Schottky barrier rectifier Production
PMEG3020CPAS 30 V, 2 A low VF dual MEGA Schottky barrier rectifier Production
PMEG3020EPAS 30 V, 2 A low VF MEGA Schottky barrier rectifier Production
PMEG4010CPAS 40 V, 1 A low VF dual MEGA Schottky barrier rectifier Production
PMEG4020EPAS 40 V, 2 A low VF MEGA Schottky barrier rectifier Production
PMEG6010CPAS 60 V, 1 A low VF dual MEGA Schottky barrier rectifier Production
PMEG6020EPAS 60 V, 2 A low VF MEGA Schottky barrier rectifier Production
BAS16LS High-speed switching diode Production
BAS16LS-Q High-speed switching diode Production
BAS21QB High-voltage switching diode Production
BAS21QB-Q High-voltage switching diode Production
BAS21QC High-voltage switching diode Production
BAS21QC-Q High-voltage switching diode Production
BAS40LS General-purpose Schottky diode Production
BAS40LS-Q General-purpose Schottky diode Production
BAS70LS General-purpose Schottky diode Production
BAS70LS-Q General-purpose Schottky diode Production
BAT54LS Schottky barrier diode Production
BAT54LS-Q Schottky barrier diode Production
BAT54QB Schottky barrier diode Production
BAT54QB-Q Schottky barrier diode Production
BAT54QC Schottky barrier diode Production
BAT54QC-Q Schottky barrier diode Production
BAV99QC Dual series high-speed switching diodes Production
BAV99QC-Q Dual series high-speed switching diodes Production

Documentation

File name Title Type Date
RS2634_DFN1110D-3_Combi DFN1110D-3_Combi_image Marcom graphics 2020-06-09
Nexperia_document_whitepaper_DFN_Wave_Soldering_2020 Whitepaper: Can DFNs be successfully wave soldered? White paper 2020-09-01
AN90023 Thermal performance of DFN packages Application note 2020-11-23
AN90023_ZH Thermal performance of DFN packages Application note 2021-02-26

If you have a support question, let us know. If you are in need of design support, let us know and fill in the answer form, we’ll get back to you shortly.

Or contact us for further support.

Datasheets (26)

File name Title Type Date
BZX884S_SER Voltage regulator diodes Data sheet 2021-02-10
BZX884S-Q_SER Voltage regulator diodes Data sheet 2021-05-06
PMEG4015EPK 40 V, 1.5 A low VF MEGA Schottky barrier rectifier Data sheet 2020-06-29
PMEG4010EPK 40 V, 1 A low VF MEGA Schottky barrier rectifier Data sheet 2018-01-18
PMEG4005EPK 40 V, 0.5 A low VF MEGA Schottky barrier rectifier Data sheet 2020-04-30
PMEG2015EPK 20 V, 1.5 A low VF MEGA Schottky barrier rectifier Data sheet 2020-06-29
PMEG2010EPK 20 V, 1 A low VF MEGA Schottky barrier rectifier Data sheet 2020-06-29
PMEG2005EPK 20 V, 0.5 A low VF MEGA Schottky barrier rectifier Data sheet 2020-06-29
BAS16LS High-speed switching diode Data sheet 2021-02-15
BAS16LS-Q High-speed switching diode Data sheet 2021-02-22
BAS21QB High-voltage switching diode Data sheet 2020-11-27
BAS21QB-Q High-voltage switching diode Data sheet 2021-05-04
BAS21QC High-voltage switching diode Data sheet 2020-11-27
BAS21QC-Q High-voltage switching diode Data sheet 2021-05-04
BAS40LS General-purpose Schottky diode Data sheet 2021-02-12
BAS40LS-Q General-purpose Schottky diode Data sheet 2021-05-04
BAS70LS General-purpose Schottky diode Data sheet 2021-01-25
BAS70LS-Q General-purpose Schottky diode Data sheet 2021-05-04
BAT54LS Schottky barrier diode Data sheet 2021-01-25
BAT54LS-Q Schottky barrier diode Data sheet 2021-05-04
BAT54QB Schottky barrier diode Data sheet 2020-11-27
BAT54QB-Q Schottky barrier diode Data sheet 2021-05-05
BAT54QC Schottky barrier diode Data sheet 2020-11-27
BAT54QC-Q Schottky barrier diode Data sheet 2021-05-05
BAV99QC Dual series high-speed switching diodes Data sheet 2020-05-25
BAV99QC-Q Dual series high-speed switching diodes Data sheet 2021-05-05
